3-100-999
ActiveSCHURTER Inc.

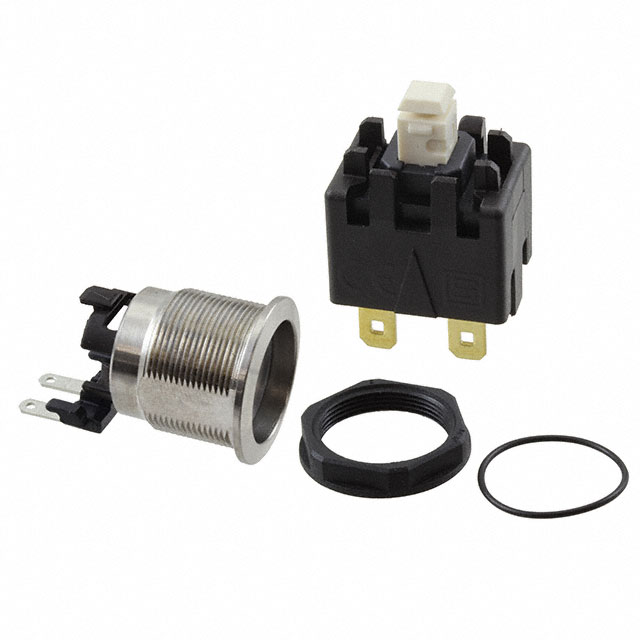

SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
3-100-999
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-100-999 | 3-100 Series |
|---|---|---|
| Accomodates a Fuse | - | False |
| Actuator Marking | No Marking | No Marking, Power Symbol |
| Actuator Type | Round, Button | Round, Button, Flush |
| Approval Agency | - | CQC, cURus, ENEC, CSA, CCC, UL, VDE |
| Circuit | DPST | SPST, SPDT, DPST |
| Color - Actuator/Cap | Silver | Silver, Clear |
| Connector Style | - | IEC 320-C14, IEC 320-2-2/F |
| Connector Type | - | Male Blades, Receptacle, Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | - | 10 A |
| Current Rating - Filter | - | 10 A |
| Current Rating (Amps) | 16 A | 5 - 16 A |
| Electrical Life | 20000 Steps | 20000 - 200000 Steps |
| Features | - | Shielded, Light Pipe, V-Lock Notch |
| Filter Type | - | Filtered (EMI, RFI) - Commercial, Unfiltered - Commercial |
| Illumination Type, Color | LED, Blue | LED, Green, Blue, Red |
| Illumination Voltage (Nominal) | 24 V | 24 V |
| Ingress Protection | IP64 - Dust Tight, Water Resistant | IP40, IP64 - Dust Tight, Water Resistant |
| Material Flammability Rating | - | UL94 V-0 |
| Mechanical Life | 100000 Cycles | 100000 - 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Flange, Snap-In, Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -25 - -20 C |
| Panel Cutout Dimensions | - | 21.5 - 24.9 mm |
| Panel Cutout Dimensions | - | 29 - 32.5 mm |
| Panel Cutout Dimensions [diameter] | 19.1 mm | 19.1 - 22.1 mm |
| Panel Thickness | - | 1.7 - 8 mm |
| Panel Thickness | - | 0.067 - 0.315 in |
| Switch Function | Off-On | Off-On, On-Mom |
| Termination | - | 0.25 in |
| Termination | - | 6.3 mm |
| Termination | - | Quick Connect |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm), Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 250 V | 125 - 250 V |
| Voltage Rating - Appliance Inlet | - | 250 VAC |
| Voltage Rating - DC | 30 V | 30 V |
3-100 Series
PWR ENT RCPT IEC320-C14 PANEL QC
| Part | Filter Type | Termination | Termination | Termination | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Ingress Protection | Panel Thickness | Panel Thickness | Features | Mounting Type | Material Flammability Rating | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Current Rating - Appliance Inlet | Connector Style | Connector Type | Current Rating - Filter | Approval Agency | Voltage Rating - DC | Current Rating (Amps) | Switch Function | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Actuator Marking | Type | Electrical Life | Mechanical Life | Actuator Type | Voltage Rating - AC | Circuit | Termination Style | Illumination Voltage (Nominal) | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3-100-776 | Filtered (EMI, RFI) - Commercial | 0.25 in | 6.3 mm | Quick Connect | 250 VAC | IP40 | 8 mm | 0.315 in | Shielded | Flange, Panel Mount | UL94 V-0 | 21.5 mm | 29 mm | 10 A | IEC 320-C14 | Male Blades, Receptacle | 10 A | CQC, cURus, ENEC | ||||||||||||||||||
SCHURTER Inc. 3-100-403 | Unfiltered - Commercial | 250 VAC | 1.7 mm | 0.067 in | Light Pipe, V-Lock Notch | Panel Mount, Snap-In | UL94 V-0 | 24.9 mm | 32.5 mm | 10 A | IEC 320-2-2/F | Receptacle, Female Sockets | CCC, CSA, ENEC, UL, VDE | |||||||||||||||||||||||
SCHURTER Inc. 3-100-991 | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | 30 V | 16 A | Off-On | Green, LED | 19.1 mm | No Marking | Anti-Vandal, Illuminated | 20000 Steps | 100000 Cycles | Button, Round | 250 V | SPST | Quick Connect - 0.187" (4.7mm) | 24 V | Silver | 85 °C | -20 C | |||||||||||||||||
SCHURTER Inc. 3-100-143 | IP40 | Panel Mount, Front | 5 A | On-Mom | Green, LED | 22.1 mm | Power Symbol | Anti-Vandal, Illuminated | 200000 Cycles | 1500000 Cycles | Button, Flush, Round | 125 V | SPDT | Quick Connect - 0.110" (2.8mm) | 24 V | Clear | 85 °C | -25 °C | ||||||||||||||||||
SCHURTER Inc. 3-100-999 | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | 30 V | 16 A | Off-On | Blue, LED | 19.1 mm | No Marking | Anti-Vandal, Illuminated | 20000 Steps | 100000 Cycles | Button, Round | 250 V | DPST | Quick Connect - 0.187" (4.7mm) | 24 V | Silver | 85 °C | -20 C | |||||||||||||||||
SCHURTER Inc. 3-100-405 | Unfiltered - Commercial | 250 VAC | 1.7 mm | 0.067 in | Light Pipe, V-Lock Notch | Panel Mount, Snap-In | UL94 V-0 | 24.9 mm | 32.5 mm | 10 A | IEC 320-2-2/F | Receptacle, Female Sockets | CCC, CSA, ENEC, UL, VDE | |||||||||||||||||||||||
SCHURTER Inc. 3-100-990 | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | 30 V | 16 A | Off-On | LED, Red | 19.1 mm | No Marking | Anti-Vandal, Illuminated | 20000 Steps | 100000 Cycles | Button, Round | 250 V | SPST | Quick Connect - 0.187" (4.7mm) | 24 V | Silver | 85 °C | -20 C | |||||||||||||||||
SCHURTER Inc. 3-100-912 | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | 30 V | 16 A | Off-On | Green, LED | 22.1 mm | No Marking | Anti-Vandal, Illuminated | 20000 Steps | 100000 Cycles | Button, Round | 250 V | DPST | Quick Connect - 0.187" (4.7mm) | 24 V | Silver | 85 °C | -20 C | |||||||||||||||||
SCHURTER Inc. 3-100-987 | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | 30 V | 16 A | Off-On | 19.1 mm | No Marking | Anti-Vandal | 20000 Steps | 100000 Cycles | Button, Round | 250 V | SPST | Quick Connect - 0.187" (4.7mm) | Silver | 85 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.79 | |
| 50 | $ 42.25 | |||
Description
General part information
3-100 Series
Pushbutton Switch DPST Anti-Vandal, Illuminated Panel Mount, Front
