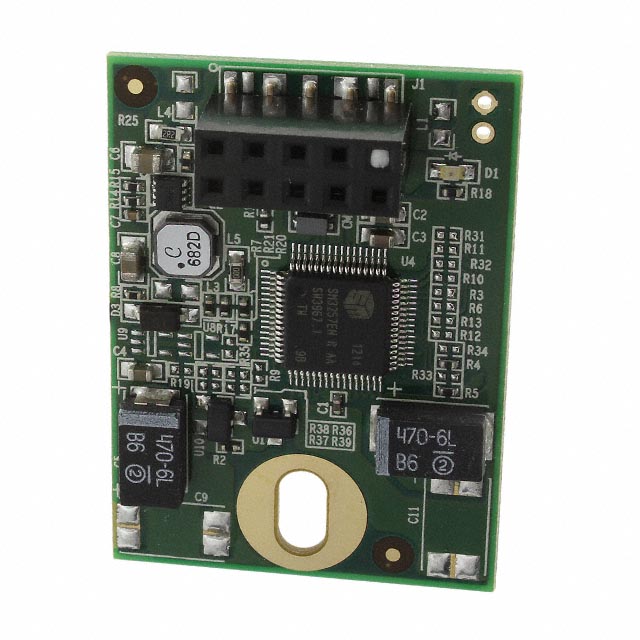

AF2GSSGH-AACXP

Active

ATP Electronics, Inc.

SSD 2GB EUSB SLC 5V

Search across all available documentation for this part.

Active

ATP Electronics, Inc.

SSD 2GB EUSB SLC 5V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AF2GSSGH-AACXP	AF2G Series

Form Factor	Disk-On-Module, eUSB	Disk-On-Module, eUSB, Slim-SATA, Disk-On-Module, SATA DOM
Memory Size	2 GB	2 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (SLC)	Solid State Drive (SSD) FLASH - NAND (SLC), CompactFlash®, microSD™, CFast, FLASH - NAND (SLC), SD™
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size / Dimension [x]	36.9 mm	26.6 - 36.9 mm
Size / Dimension [y]	26.6 mm	12 - 26.6 mm
Size / Dimension [z]	11.5 mm	4.5 - 11.5 mm
Speed	-	Class 6
Speed - Read	30 MB/s	21 - 112 MB/s
Speed - Write	27 MB/s	16 - 91 MB/s
Technology	-	SLC
Type	-	USB 2.0
Weight	-	8 g
Weight	-	0.282 oz

SSD 2GB EUSB SLC 5V

Part	Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Speed - Write	Memory Type	Speed - Read	Form Factor	Technology	Type	Weight	Weight	Speed
ATP Electronics, Inc. AF2GSSGH-AACXP	2 GB	85 °C	-40 °C	36.9 mm	11.5 mm	26.6 mm	27 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	30 MB/s	Disk-On-Module, eUSB
ATP Electronics, Inc. AF2GCFI-TADXP	2 GB	85 °C	-40 °C					CompactFlash®			SLC
ATP Electronics, Inc. AF2GUDI-ZAFXM	2 GB	85 °C	-40 °C					microSD™			SLC
ATP Electronics, Inc. AF2GCSI-OEM	2 GB	85 °C	-40 °C					CFast			SLC
ATP Electronics, Inc. AF2GUFP3NC(I)-OEM	2 GB	85 °C	-40 °C	26.6 mm	4.5 mm	12 mm	16 MB/s	FLASH - NAND (SLC)	21 MB/s			USB 2.0	8 g	0.282 oz
ATP Electronics, Inc. AF2GSDI-ZAFXM	2 GB	85 °C	-40 °C					SD™			SLC				Class 6
ATP Electronics, Inc. AF2GSSGI-OEM	2 GB	85 °C	-40 °C	36.9 mm	11.5 mm	26.6 mm	27 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	30 MB/s	Disk-On-Module, eUSB
ATP Electronics, Inc. AF2GSSEL-OEM	2 GB	85 °C	-40 °C				91 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	112 MB/s	Slim-SATA
ATP Electronics, Inc. AF2GSSEI-OEM	2 GB	85 °C	-40 °C					Solid State Drive (SSD) FLASH - NAND (SLC)		Disk-On-Module, SATA DOM
ATP Electronics, Inc. AF2GUFEDBK(I)-OEM	2 GB	85 °C	-40 °C	33.7 mm	9.4 mm	17.5 mm	16 MB/s	FLASH - NAND (SLC)	21 MB/s			USB 2.0	8 g	0.282 oz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State Drive (SSD) FLASH - NAND (SLC) 2GB Disk-On-Module, eUSB 5V
