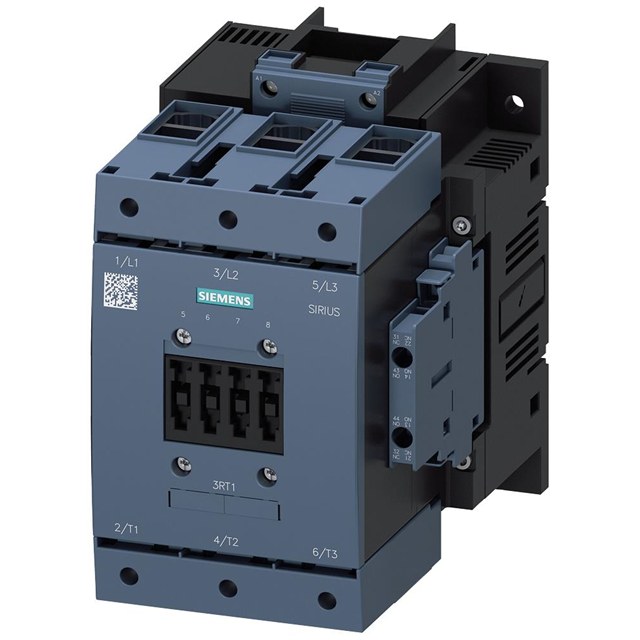

Specification	3RT10541AM36

Coil Power	360 W
Coil Voltage (Max)	220 VAC/DC
Coil Voltage (Min)	200 VAC/DC
Coil Voltage (Type)	DC, AC
Contact Form	A, PST-NO, Form, 3
Contact Rating (Current)	115 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	95 ms
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Pin Count	3 pins
Release Time	60 ms
Switching Voltage AC (Max)	1000 VAC
Termination Style	Screw Terminal

3RT1054 Series

Part	Coil Power	Operate Time	Release Time	Features	Termination Style	Pin Count	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Switching Voltage AC (Max)	Contact Rating (Current)	Coil Voltage (Max)	Coil Voltage (Type)	Coil Voltage (Min)	Must Operate Voltage	Coil Voltage
Siemens 3RT10546NF36	320 W	75 ms	90 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	127 VAC/DC	AC DC	96 VAC/DC
Siemens 3RT10542NP36	320 W	75 ms	90 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	277 VAC	AC DC	200 VAC/DC
Siemens 3RT10542AU36	360 W	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	277 VAC	AC DC	240 VAC/DC
Siemens 3RT10543XB460LA2	320 W	75 ms	90 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-40 °C	70 °C	Chassis Mount DIN Rail	1000 VAC	115 A				16.8 VDC	24 VDC
Siemens 3RT10546AU36	360 W	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	277 VAC	AC DC	240 VAC/DC
Siemens 3RT10546AM36	300 VA	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount	690 VAC	115 A	242 VAC/DC	AC DC	200 VAC/DC
Siemens 3RT10541AR36	360 W	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	480 VAC	AC DC	440 VAC/DC
Siemens 3RT10546NB363PA0												115 A	27.3 VAC/DC	AC DC	21 VAC/DC
Siemens 3RT10546AV36	360 W	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	420 VAC/DC	AC DC	380 VAC/DC
Siemens 3RT10541AM36	360 W	95 ms	60 ms	Auxiliary Contacts	Screw Terminal	3 pins	3 A Form PST-NO	-25 °C	60 °C	Chassis Mount DIN Rail	1000 VAC	115 A	220 VAC/DC	AC DC	200 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SIRIUS Contactor Fail Safe Brochure

SIRIUS Contactor Selection Guide.pdy

SIRIUS Contactor Simply Switch Safely WhitePaper

3RT10541AM36 | Datasheet
