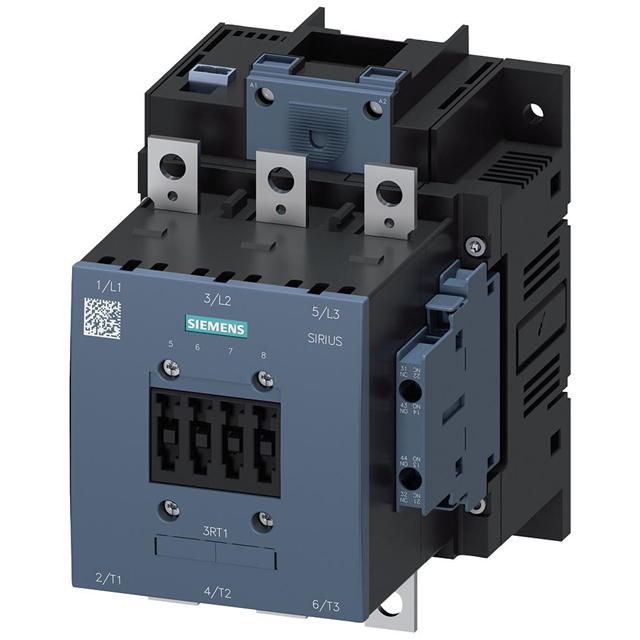

3RT10546NF36
ActiveSiemens
CONTACTOR S6 115A 96-127VUC 3P B
Deep-Dive with AI
Search across all available documentation for this part.
3RT10546NF36
ActiveSiemens
CONTACTOR S6 115A 96-127VUC 3P B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT10546NF36 |
|---|---|
| Coil Power | 320 W |
| Coil Voltage [Max] | 127 VAC/DC |
| Coil Voltage [Min] | 96 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 115 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 75 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 90 ms |
| Switching Voltage | 1000 VAC |
| Termination Style | Screw Terminal |
3RT1054 Series
| Part | Coil Power | Mounting Type | Operate Time | Contact Form | Features | Contact Rating (Current) | Coil Voltage [Max] | Coil Voltage [Min] | Termination Style | Release Time | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 320 W | Chassis Mount DIN Rail | 75 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 127 VAC/DC | 96 VAC/DC | Screw Terminal | 90 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 320 W | Chassis Mount DIN Rail | 75 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 277 VAC | 200 VAC/DC | Screw Terminal | 90 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 360 W | Chassis Mount DIN Rail | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 277 VAC | 240 VAC/DC | Screw Terminal | 60 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 320 W | Chassis Mount DIN Rail | 75 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | Screw Terminal | 90 ms | 1000 VAC | -40 °C | 70 °C | 24 VDC | 16.8 VDC | ||
Siemens | 360 W | Chassis Mount DIN Rail | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 277 VAC | 240 VAC/DC | Screw Terminal | 60 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 300 VA | Chassis Mount | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 242 VAC/DC | 200 VAC/DC | Screw Terminal | 60 ms | 690 VAC | -25 °C | 60 °C | ||
Siemens | 360 W | Chassis Mount DIN Rail | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 480 VAC/DC | 440 VAC/DC | Screw Terminal | 60 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 115 A | 27.3 VAC/DC | 21 VAC/DC | ||||||||||||
Siemens | 360 W | Chassis Mount DIN Rail | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 420 VAC/DC | 380 VAC/DC | Screw Terminal | 60 ms | 1000 VAC | -25 °C | 60 °C | ||
Siemens | 360 W | Chassis Mount DIN Rail | 95 ms | 3PST-NO (3 Form A) | Auxiliary Contacts | 115 A | 220 VAC/DC | 200 VAC/DC | Screw Terminal | 60 ms | 1000 VAC | -25 °C | 60 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 970.43 | |
Description
General part information
3RT1054 Series
CONTACTOR S6 115A 96-127VUC 3P B
