322-044-560-258

Active

EDAC Inc.

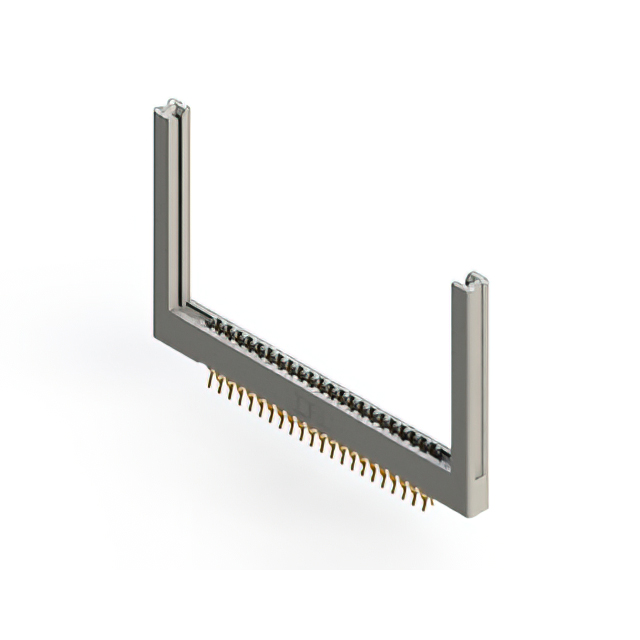

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

322-044-560-258

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	322-044-560-258

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Gray
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polycarbonate (PC), Glass Filled
Mounting Type	Board Edge, Straddle Mount
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

322-044 Series

Part	Pitch [x]	Pitch [x]	Number of Positions	Material - Insulation	Contact Type	Termination Rows	Termination	Number of Positions/Bay/Row [custom]	Read Out	Mounting Type	Contact Material	Gender	Contact Finish	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 322-044-560-258	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Board Edge Straddle Mount	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám
EDAC Inc. 322-044-520-254	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám	3.96 mm	0.156 in	Card Guides
EDAC Inc. 322-044-522-254	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám	3.96 mm	0.156 in	Card Guides
EDAC Inc. 322-044-540-258	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Wire Wrap	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 322-044-522-258	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 322-044-540-257	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Wire Wrap	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	Flush Mount M3 Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 322-044-558-257	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder Wire Wrap	22	Dual	Through Hole Right Angle	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	Flush Mount M3 Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 322-044-500-258	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder Eyelet(s)	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides
EDAC Inc. 322-044-560-254	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Board Edge Straddle Mount	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám	3.96 mm	0.156 in
EDAC Inc. 322-044-524-258	0.156 in	3.96 mm	44	Polycarbonate (PC) Glass Filled	Semi Bellows	2	Solder	22	Dual	Through Hole	Copper Alloy	Female	Gold	Non Specified - Dual Edge	-40 °C	105 ░C	Gray	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	2	10 Áin	0.25 Ám			Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 31.18
Newark	Each	1	$ 34.84
		100	$ 21.25
		250	$ 14.89
		500	$ 14.11
		1000	$ 12.14

Description

General part information

322-044 Series

44 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Gray
