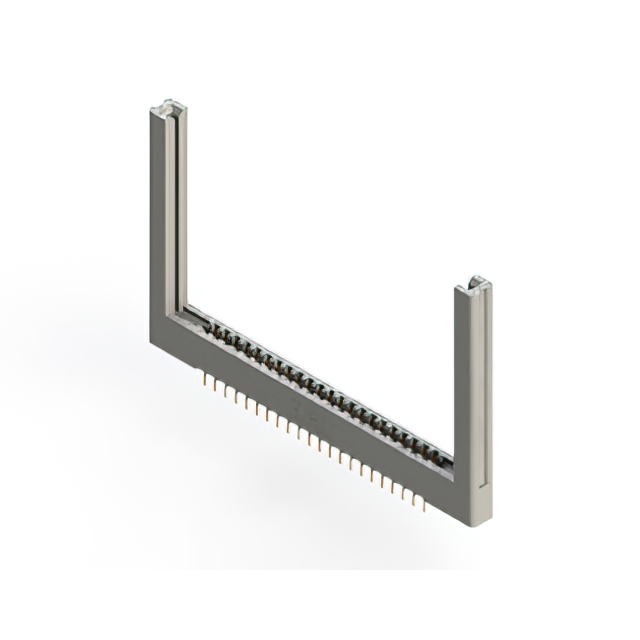

Specification	322-044-524-258

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Gray
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Glass Filled, PC, Polycarbonate
Mounting Type	Through Hole
Number of Positions	22, 44
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

322-044 Series

Part	Card Type	Number of Positions	Number of Rows	Contact Finish Thickness	Mounting Type	Read Out	Card Thickness (Min)	Card Thickness (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Gender	Contact Finish	Contact Material	Color	Contact Type	Termination	Flange Feature	Features	Pitch	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 322-044-560-258	Dual Edge Non Specified	22 44	2	10 Ąin	Board Edge Straddle Mount	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	4-40 Flush Mount Threaded Insert Top Opening	Card Extender Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-520-254	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	Flush Mount Top Opening Unthreaded	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows	0.156 in
EDAC Inc. 322-044-522-254	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	Flush Mount Top Opening Unthreaded	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows	0.156 in
EDAC Inc. 322-044-540-258	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-522-258	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-556-254	Dual Edge Non Specified	22 44	2	10 Ąin	Board Edge Straddle Mount	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	Flush Mount Top Opening Unthreaded	Card Extender Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows	0.156 in
EDAC Inc. 322-044-540-257	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-558-257	Dual Edge Non Specified	22 44	2	10 Ąin	Right Angle Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder Wire Wrap	Flush Mount M3 Threaded Insert Top Opening	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-500-258	Dual Edge Non Specified	22 44	2	10 Ąin	Through Hole	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows
EDAC Inc. 322-044-560-254	Dual Edge Non Specified	22 44	2	10 Ąin	Board Edge Straddle Mount	Dual	0.054 in	0.07 in	-40 °C	105 °C	Female	Gold	Copper Alloy	Gray	Semi Bellows	Solder	Flush Mount Top Opening Unthreaded	Card Extender Card Guides	0.156 in	Glass Filled PC Polycarbonate	2 rows	0.156 in
