630-037-240-515

Active

EDAC Inc.

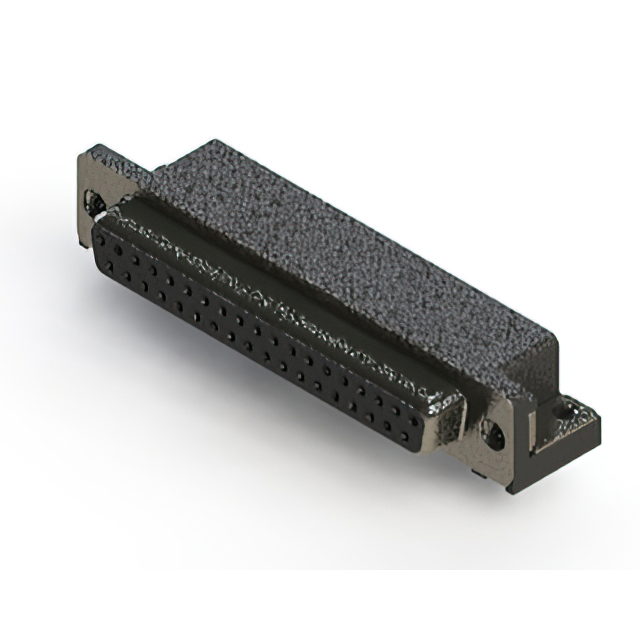

630 SERIES RIGHT ANGLE D-SUB REC

630-037-240-515

Active

EDAC Inc.

630 SERIES RIGHT ANGLE D-SUB REC

Description Specifications Series Pricing CAD Documents

Description

General part information

630-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	630-037-240-515

Backset Spacing	0.409 in
Color	Black
Connector Layout	DC, C
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	37 pos
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	4
Termination	Solder

630-037 Series

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Features	Shell Size	Connector Layout	Connector Type	Termination	Current Rating (Per Contact)	Material Flammability Rating	Contact Finish	Connector Style	Shell Material	Finish	Number of Rows	Contact Type	Number of Positions	Mounting Type	Flange Feature	Backset Spacing	Dielectric Material	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)
EDAC Inc. 630-037-240-013	0	Flash	Flash	Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	85 °C
EDAC Inc. 630-037-340-533	15 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C
EDAC Inc. 630-037-340-513	15 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C
EDAC Inc. 630-037-240-545	0	Flash	Flash	Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Housing Shell (M3)	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C
EDAC Inc. 630-037-640-013	30 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	85 °C
EDAC Inc. 630-037-340-541	15 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Housing Shell (Unthreaded)	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C
EDAC Inc. 630-037-240-033	0	Flash	Flash	Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Right Angle Through Hole	Female Screwlock (4-40) Mating Side	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	85 °C
EDAC Inc. 630-037-640-531	30 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Right Angle Through Hole	Housing Shell (Unthreaded)	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C
EDAC Inc. 630-037-640-042	30 µin			Board Lock Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Housing Shell (4-40)	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	85 °C
EDAC Inc. 630-037-240-515	0	Flash	Flash	Mounting Brackets Shielded	4	C DC	Female Sockets Receptacle	Solder	3 A	UL94 V-0	Gold	D-Sub	Steel	Nickel Plated	2	Signal	37 pos	Board Edge Right Angle Through Hole	Housing Shell (M3)	0.409 in	Polyester Thermoplastic	Copper Alloy	Black	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

630-037-240-515 | Datasheet
