630-037-340-533

Active

EDAC Inc.

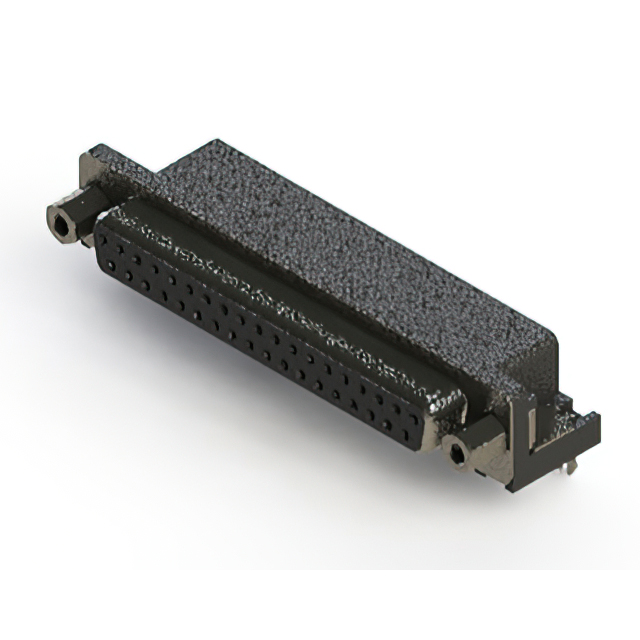

630 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-037-340-533

Active

EDAC Inc.

630 SERIES RIGHT ANGLE D-SUB REC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-037-340-533

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

630-037 Series

Part	Contact Finish Thickness	Termination	Contact Type	Current Rating (Amps)	Color	Backset Spacing	Backset Spacing	Material Flammability Rating	Mounting Type	Contact Material	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Features	Flange Feature	Connector Type	Connector Style	Contact Finish	Number of Rows	Number of Positions	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-037-240-013	Flash	Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	85 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)
EDAC Inc. 630-037-340-533		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Through Hole Right Angle	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 630-037-340-513		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 630-037-240-545	Flash	Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Housing/Shell (M3)	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)
EDAC Inc. 630-037-640-013		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	85 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 630-037-340-541		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Housing/Shell (Unthreaded)	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	15 µin	0.38 µm
EDAC Inc. 630-037-240-033	Flash	Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Through Hole Right Angle	Copper Alloy	Nickel Plated Steel	85 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Female Screwlock (4-40) Mating Side	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)
EDAC Inc. 630-037-640-531		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Through Hole Right Angle	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Housing/Shell (Unthreaded)	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 630-037-640-042		Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	85 °C	-55 °C	Polyester Thermoplastic	Board Lock Mounting Brackets Shielded	Housing/Shell (4-40)	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)	30 Áin	0.76 Ám
EDAC Inc. 630-037-240-515	Flash	Solder	Signal	3 A	Black	0.409 in	10.4 mm	UL94 V-0	Board Edge Right Angle Through Hole	Copper Alloy	Nickel Plated Steel	125 °C	-55 °C	Polyester Thermoplastic	Mounting Brackets Shielded	Housing/Shell (M3)	Receptacle Female Sockets	D-Sub	Gold	2	37	4 (DC C)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 3.92

Description

General part information

630-037 Series

37 Position D-Sub Receptacle, Female Sockets Connector
