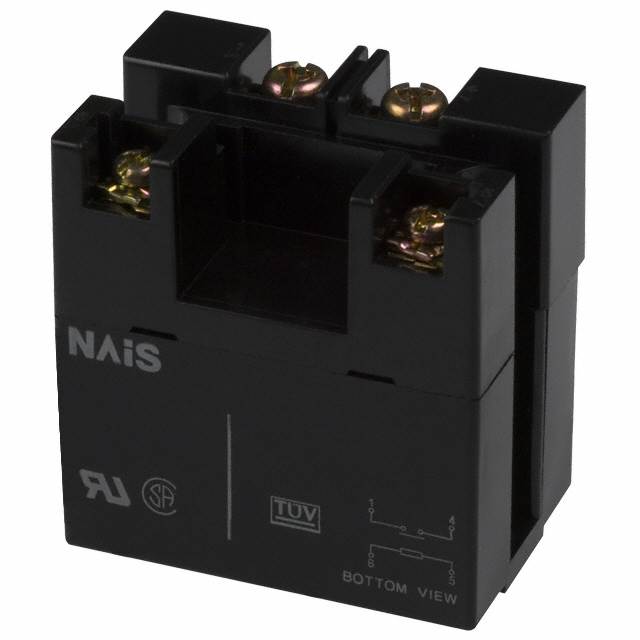

HE1AN-S-DC6V
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 30A 6V
Deep-Dive with AI
Search across all available documentation for this part.
HE1AN-S-DC6V
ActivePanasonic Electric Works
RELAY GEN PURPOSE SPST 30A 6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HE1AN-S-DC6V |
|---|---|
| Approval Agency | CSA, TUV, VDE, UR |
| Coil Current | 320 mA |
| Coil Resistance | 18.8 Ohms |
| Coil Type | Non Latching |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 900 W, 8310 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 30 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -50 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 277 VAC, 30 VDC |
| Termination Style | Screw Terminal |
HE1AN Series
| Part | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Coil Voltage | Must Operate Voltage | Load - Max Switching | Approval Agency | Contact Form | Switching Voltage | Relay Type | Termination Style | Release Time | Operate Time | Coil Current | Mounting Type | Coil Type | Contact Material | Must Release Voltage | Coil Resistance | Switching Voltage | Switching Voltage | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electric Works | 48 A | -50 °C | 55 °C | 24 VDC | 16.8 VDC | 2304 W 23520 VA | CSA cURus VDE | SPST-NO (1 Form A) | 48 VDC 490 VAC | General Purpose | PC Pin | 10 ms | 30 ms | 80 mA | Through Hole | Non Latching | Silver Nickel (AgNi) | 2.4 VDC | 300 Ohms | |||
Panasonic Electric Works | 90 A | -50 °C | 85 °C | 12 VDC | 9 VDC | 5400 W 72000 VA | CSA cURus VDE | SPST-NO (1 Form A) | General Purpose | PC Pin | 10 ms | 30 ms | 160 mA | Through Hole | Non Latching | Silver Nickel (AgNi) | 1.2 VDC | 75 Ohms | 800 VAC | 60 VDC | Sealed - Flux Protection | |
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 240 VAC | 168 VAC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Screw Terminal | 30 ms | 30 ms | 10.8 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 36 VAC | 22.22 kOhms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 12 VAC/DC | 8.4 VAC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Screw Terminal | 30 ms | 30 ms | 138 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 1.8 VAC | 87 Ohms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 48 VAC/DC | 33.6 VAC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Screw Terminal | 30 ms | 30 ms | 39 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 7.2 VAC | 1231 Ohms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 110 VDC | 77 VDC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Screw Terminal | 10 ms | 30 ms | 17.5 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 11 VDC | 6.3 kOhms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 110 VDC | 77 VDC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Quick Connect - 0.250" (6.3mm) | 10 ms | 30 ms | 17.5 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 11 VDC | 6.3 kOhms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 120 VAC | 84 VAC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Quick Connect - 0.250" (6.3mm) | 30 ms | 30 ms | 22.1 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 18 VAC | 5430 Ohms | |||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 4.2 VDC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | Screw Terminal | 10 ms | 30 ms | 320 mA | Chassis Mount | Non Latching | Silver Tin Oxide (AgSnO) | 0.6 VDC | 18.8 Ohms | ||||
Panasonic Electric Works | 30 A | -50 °C | 55 °C | 24 VDC | 16.8 VDC | 900 W 8310 VA | CSA TUV UR VDE | SPST-NO (1 Form A) | 30 VDC 277 VAC | General Purpose | PC Pin | 10 ms | 30 ms | 80 mA | Through Hole | Non Latching | Silver Tin Oxide (AgSnO) | 2.4 VDC | 300 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 20 | $ 26.31 | |
Description
General part information
HE1AN Series
General Purpose Relay SPST-NO (1 Form A) 6VDC Coil Chassis Mount
