HE1AN-P-DC24V-Y5

Active

Panasonic Electric Works

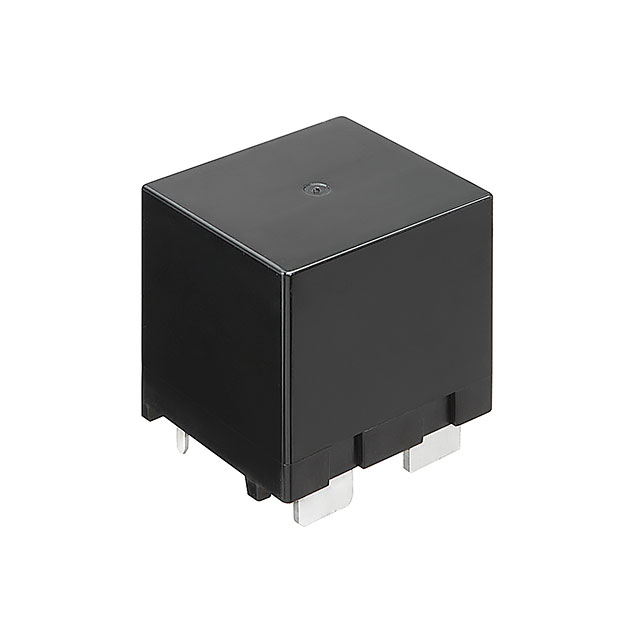

RELAY GEN PURPOSE SPST 48A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes +1

HE1AN-P-DC24V-Y5

Active

Panasonic Electric Works

RELAY GEN PURPOSE SPST 48A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HE1AN-P-DC24V-Y5

Approval Agency	cURus, VDE, CSA
Coil Current	80 mA
Coil Resistance	300 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	48 A
Load - Max Switching	23520 VA, 2304 W
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	2.4 VDC
Operate Time	30 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-50 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	490 VAC, 48 VDC
Termination Style	PC Pin

HE1AN Series

Part	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Must Operate Voltage	Load - Max Switching	Approval Agency	Contact Form	Switching Voltage	Relay Type	Termination Style	Release Time	Operate Time	Coil Current	Mounting Type	Coil Type	Contact Material	Must Release Voltage	Coil Resistance	Switching Voltage	Switching Voltage	Seal Rating
Panasonic Electric Works HE1AN-P-DC24V-Y5	48 A	-50 °C	55 °C	24 VDC	16.8 VDC	2304 W 23520 VA	CSA cURus VDE	SPST-NO (1 Form A)	48 VDC 490 VAC	General Purpose	PC Pin	10 ms	30 ms	80 mA	Through Hole	Non Latching	Silver Nickel (AgNi)	2.4 VDC	300 Ohms
Panasonic Electric Works HE1AN-W-DC12V-Y6H	90 A	-50 °C	85 °C	12 VDC	9 VDC	5400 W 72000 VA	CSA cURus VDE	SPST-NO (1 Form A)		General Purpose	PC Pin	10 ms	30 ms	160 mA	Through Hole	Non Latching	Silver Nickel (AgNi)	1.2 VDC	75 Ohms	800 VAC	60 VDC	Sealed - Flux Protection
Panasonic Electric Works HE1AN-SW-AC240V	30 A	-50 °C	55 °C	240 VAC	168 VAC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Screw Terminal	30 ms	30 ms	10.8 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	36 VAC	22.22 kOhms
Panasonic Electric Works HE1AN-SW-AC12V	30 A	-50 °C	55 °C	12 VAC/DC	8.4 VAC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Screw Terminal	30 ms	30 ms	138 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	1.8 VAC	87 Ohms
Panasonic Electric Works HE1AN-S-AC48V	30 A	-50 °C	55 °C	48 VAC/DC	33.6 VAC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Screw Terminal	30 ms	30 ms	39 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	7.2 VAC	1231 Ohms
Panasonic Electric Works HE1AN-S-DC110V	30 A	-50 °C	55 °C	110 VDC	77 VDC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Screw Terminal	10 ms	30 ms	17.5 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	11 VDC	6.3 kOhms
Panasonic Electric Works HE1AN-Q-DC110V	30 A	-50 °C	55 °C	110 VDC	77 VDC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Quick Connect - 0.250" (6.3mm)	10 ms	30 ms	17.5 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	11 VDC	6.3 kOhms
Panasonic Electric Works HE1AN-Q-AC120V	30 A	-50 °C	55 °C	120 VAC	84 VAC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Quick Connect - 0.250" (6.3mm)	30 ms	30 ms	22.1 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	18 VAC	5430 Ohms
Panasonic Electric Works HE1AN-S-DC6V	30 A	-50 °C	55 °C		4.2 VDC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	Screw Terminal	10 ms	30 ms	320 mA	Chassis Mount	Non Latching	Silver Tin Oxide (AgSnO)	0.6 VDC	18.8 Ohms
Panasonic Electric Works HE1AN-P-DC24V	30 A	-50 °C	55 °C	24 VDC	16.8 VDC	900 W 8310 VA	CSA TUV UR VDE	SPST-NO (1 Form A)	30 VDC 277 VAC	General Purpose	PC Pin	10 ms	30 ms	80 mA	Through Hole	Non Latching	Silver Tin Oxide (AgSnO)	2.4 VDC	300 Ohms
