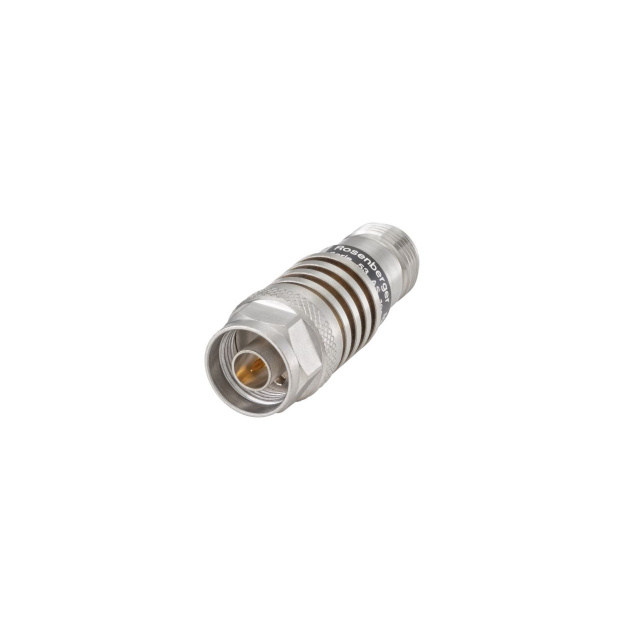

53AS105-K30N3

Active

Rosenberger

N TYPE ATTENUATOR

Search across all available documentation for this part.

Active

Rosenberger

N TYPE ATTENUATOR

Technical Specifications

Parameters and characteristics for this part

Part	Attenuation Value [custom]	Power (Watts)	Package / Case	Impedance	Frequency Range [Max]	Attenuation Value
Rosenberger 53AS105-K30N3	30 dB	5 W	N-Type In-Line Module	50 Ohms	10 GHz
Rosenberger 53AS105-K06N3	6 dB	5 W	N-Type In-Line Module	50 Ohms	10 GHz
Rosenberger 53AS105-K03N3	3 dB	5 W	N-Type In-Line Module	50 Ohms	10 GHz
Rosenberger 53AS105-K20N3		5 W	N-Type In-Line Module	50 Ohms	10 GHz	20 dB
Rosenberger 53AS102-K30N3	30 dB	2 W	N-Type In-Line Module	50 Ohms	12.4 GHz
Rosenberger 53AS102-K20N3		2 W	N-Type In-Line Module	50 Ohms	12.4 GHz	20 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Attenuators 30dB 0 Hz ~ 10 GHz 50 Ohms 5W N-Type In-Line Module

Technical documentation and resources

No documents available
