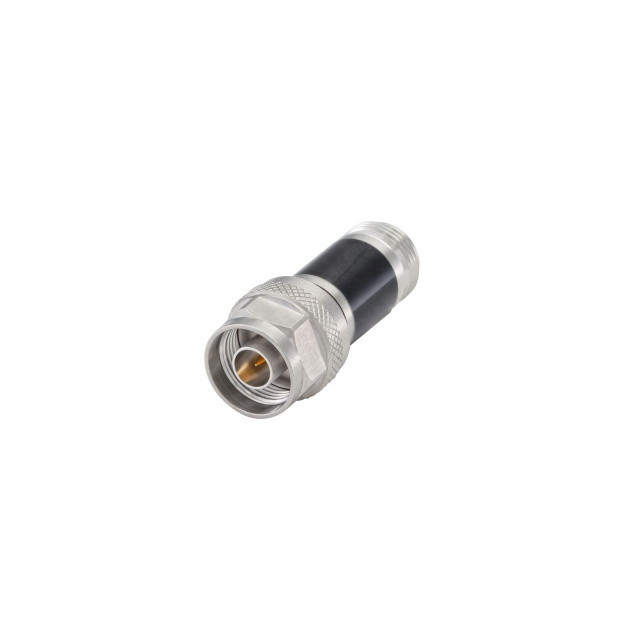

53AS102-K20N3
ActiveRosenberger
N TYPE ATTENUATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
53AS102-K20N3
ActiveRosenberger
N TYPE ATTENUATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 53AS102-K20N3 |
|---|---|
| Attenuation Value | 20 dB |
| Frequency Range [Max] | 12.4 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Package / Case | N-Type In-Line Module |
| Power (Watts) | 2 W |
53AS10 Series
| Part | Attenuation Value [custom] | Power (Watts) | Package / Case | Impedance | Frequency Range [Min] | Frequency Range [Max] | Attenuation Value |
|---|---|---|---|---|---|---|---|
Rosenberger | 30 dB | 5 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 10 GHz | |
Rosenberger | 6 dB | 5 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 10 GHz | |
Rosenberger | 3 dB | 5 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 10 GHz | |
Rosenberger | 5 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 10 GHz | 20 dB | |
Rosenberger | 30 dB | 2 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 12.4 GHz | |
Rosenberger | 2 W | N-Type In-Line Module | 50 Ohms | 0 Hz | 12.4 GHz | 20 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
53AS10 Series
RF Attenuators 20dB 0 Hz ~ 12.4 GHz 50 Ohms 2W N-Type In-Line Module
