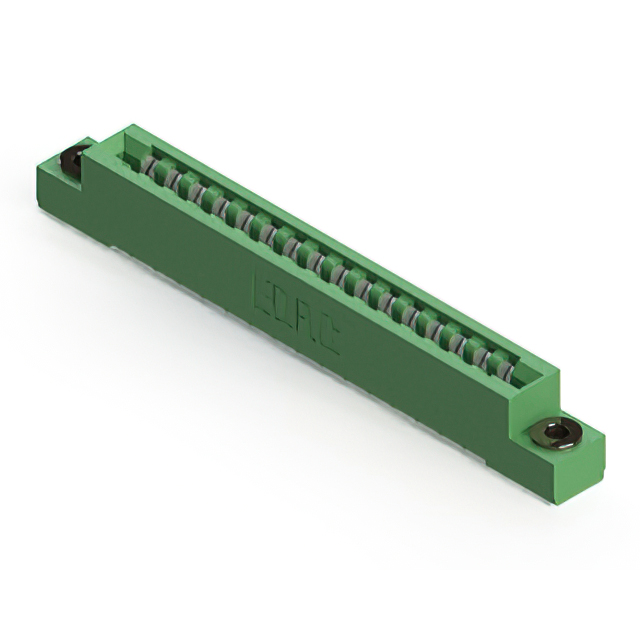

807-016-421-103

Active

EDAC Inc.

CONN EDGE DUAL FMALE 32POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-016-421-103

Active

EDAC Inc.

CONN EDGE DUAL FMALE 32POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-016-421-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	16
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

807-016 Series

...

Part	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Material	Termination Rows	Color	Gender	Number of Rows	Mounting Type	Card Type	Contact Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 807-016-421-103	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Diallyl Phthalate (DAP)	125 °C	-40 °C	Dual	Copper Alloy	1	Green	Female	2	Through Hole	Non Specified - Dual Edge	Semi Bellows	16
EDAC Inc. 807-016-459-201				Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Diallyl Phthalate (DAP)	125 °C	-40 °C	Single	Copper Alloy	2	Green	Female	2	Through Hole Right Angle	Non Specified - Dual Edge	Semi Bellows		8	8	8	16
EDAC Inc. 807-016-445-101				Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Diallyl Phthalate (DAP)	125 °C	-40 °C	Single	Copper Alloy	1	Green	Female	1	Through Hole	Non Specified - Single Edge	Semi Bellows	16				16
EDAC Inc. 807-016-458-101				Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Diallyl Phthalate (DAP)	125 °C	-40 °C	Single	Copper Alloy	1	Green	Female	1	Through Hole Right Angle	Non Specified - Single Edge	Semi Bellows	16				16
EDAC Inc. 807-016-400-204	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Diallyl Phthalate (DAP)	125 °C	-40 °C	Dual	Copper Alloy	2	Green	Female	2	Through Hole	Non Specified - Dual Edge	Semi Bellows		8	8	8	16
EDAC Inc. 807-016-524-202	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Diallyl Phthalate (DAP)	125 °C	-40 °C	Dual	Copper Alloy	2	Green	Female	2	Through Hole	Non Specified - Dual Edge	Semi Bellows		8	8	8	16	10 Áin	0.25 Ám
EDAC Inc. 807-016-557-101				Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Diallyl Phthalate (DAP)	125 °C	-40 °C	Dual	Copper Alloy	1	Green	Female	2	Through Hole Right Angle	Non Specified - Dual Edge	Semi Bellows	16					10 Áin	0.25 Ám
EDAC Inc. 807-016-405-108		4-40 Flush Mount Threaded Insert Top Opening		Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Diallyl Phthalate (DAP)	125 °C	-40 °C	Single	Copper Alloy	1	Green	Female	1	Through Hole	Non Specified - Single Edge	Semi Bellows	16				16
EDAC Inc. 807-016-540-207		Flush Mount M3 Threaded Insert Top Opening		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Diallyl Phthalate (DAP)	125 °C	-40 °C	Dual	Copper Alloy	2	Green	Female	2	Through Hole	Non Specified - Dual Edge	Semi Bellows		8	8	8	16	10 Áin	0.25 Ám
EDAC Inc. 807-016-545-112		Side Mount Opening Unthreaded		Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Wire Wrap	Diallyl Phthalate (DAP)	125 °C	-40 °C	Single	Copper Alloy	1	Green	Female	1	Through Hole	Non Specified - Single Edge	Semi Bellows	16				16	10 Áin	0.25 Ám	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 148.29
Newark	Each	1	$ 177.95
		100	$ 103.23
		250	$ 95.18
		500	$ 88.23
		1000	$ 67.50

Description

General part information

807-016 Series

32 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
