Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS51020EVM-001 | TPS51020 Series |
|---|---|---|
| Applications | - | DDR, Controller |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 6 A | 6 A |
| Frequency - Switching | 300 kHz | 300 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 2 |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 85 °C |
| Outputs and Type | 2 | 2 |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Package / Case | - | 30-TFSOP |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 30-TSSOP |
| Utilized IC / Part | TPS51020 | TPS51020 |
| Voltage - Input [Max] | 20 V | 20 - 28 V |
| Voltage - Input [Min] | 8 V | 4.5 - 8 V |
| Voltage - Output | 5 V, 3.3 V | 3.3 - 5 V |
| Voltage - Output | - | 24 V |
| Voltage - Output | - | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 199.00 | |
TPS51020 Series
Dual, DDR selectable, Synchronous buck controller
| Part | Mounting Type | Package / Case | Number of Outputs [custom] | Supplier Device Package | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Board Type | Frequency - Switching | Main Purpose | Supplied Contents | Current - Output | Utilized IC / Part | Voltage - Output | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS51020DBT | Surface Mount | 30-TFSOP | 2 | 30-TSSOP | 24 V | 0.9 V | 28 V | 4.5 V | -40 °C | 85 °C | Controller, DDR | |||||||||
Texas Instruments TPS51020DBTR | Surface Mount | 30-TFSOP | 2 | 30-TSSOP | 24 V | 0.9 V | 28 V | 4.5 V | -40 °C | 85 °C | Controller, DDR | |||||||||

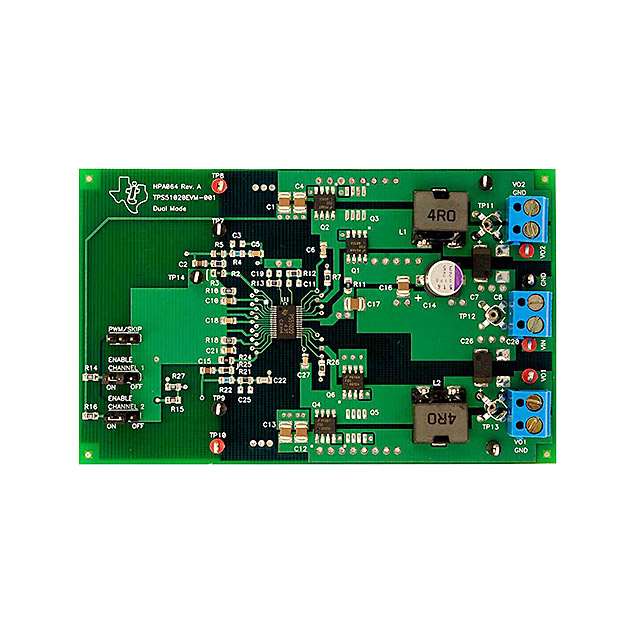

Texas Instruments TPS51020EVM-001 | 20 V | 8 V | Fully Populated | 300 kHz | DC/DC, Step Down | Board(s) | 6 A | TPS51020 | 3.3 V, 5 V | 2 | Non-Isolated | |||||||||
Texas Instruments TPS51020DBTRG4 | Surface Mount | 30-TFSOP | 2 | 30-TSSOP | 24 V | 0.9 V | 28 V | 4.5 V | -40 °C | 85 °C | Controller, DDR |
Description
General part information
TPS51020 Series
The TPS51020 is a multi-function dual-synchronous step-down controller for notebook system power. The part is specifically designed for high performance, high efficiency applications where the loss associated with a current sense resistor is unacceptable. The TPS51020 utilizes feed forward voltage mode control to attain high efficiency without sacrificing line response. Efficiency at light load conditions can be maintained high as well by incorporating autoskip operation. A selectable, Suspend to RAM (STR) supported, DDR option provides a one chip solution for all switching applications from 5-V/3.3-V supply to a complete DDR termination solution.
The TPS51020 is a multi-function dual-synchronous step-down controller for notebook system power. The part is specifically designed for high performance, high efficiency applications where the loss associated with a current sense resistor is unacceptable. The TPS51020 utilizes feed forward voltage mode control to attain high efficiency without sacrificing line response. Efficiency at light load conditions can be maintained high as well by incorporating autoskip operation. A selectable, Suspend to RAM (STR) supported, DDR option provides a one chip solution for all switching applications from 5-V/3.3-V supply to a complete DDR termination solution.
