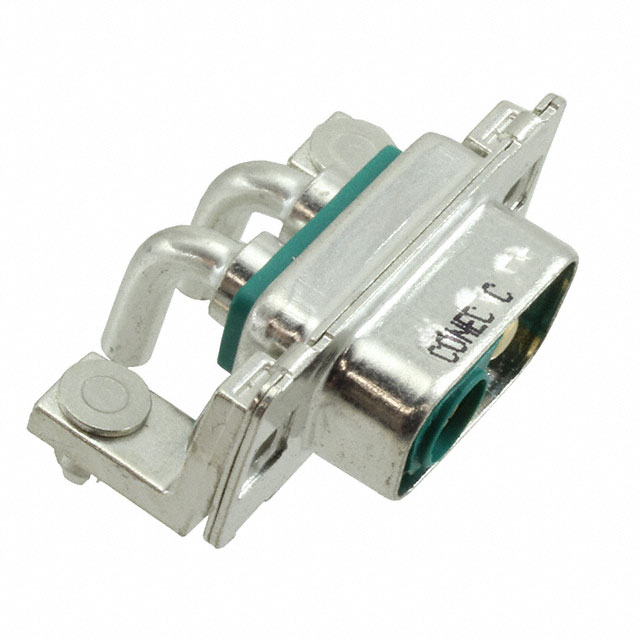

302W2CPXX56N40X
ActiveAmphenol CONEC
CONN D-SUB PLUG 2POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
302W2CPXX56N40X
ActiveAmphenol CONEC
CONN D-SUB PLUG 2POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 302W2CPXX56N40X |
|---|---|
| Backset Spacing | 11.65 mm |
| Backset Spacing | 0.459 " |
| Color | Green |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Mounting Brackets, Board Lock |
| Flange Feature | Housing/Shell (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 1 (DE, E), 2V2, 2W2C |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.14 | |
| 10 | $ 14.85 | |||
| 25 | $ 14.08 | |||
| 50 | $ 13.87 | |||
| 100 | $ 12.24 | |||
| 250 | $ 11.43 | |||
| 500 | $ 11.18 | |||
Description
General part information
302W2CP Series
2 (Power) Position D-Sub, Combo Plug, Male Pins Connector
