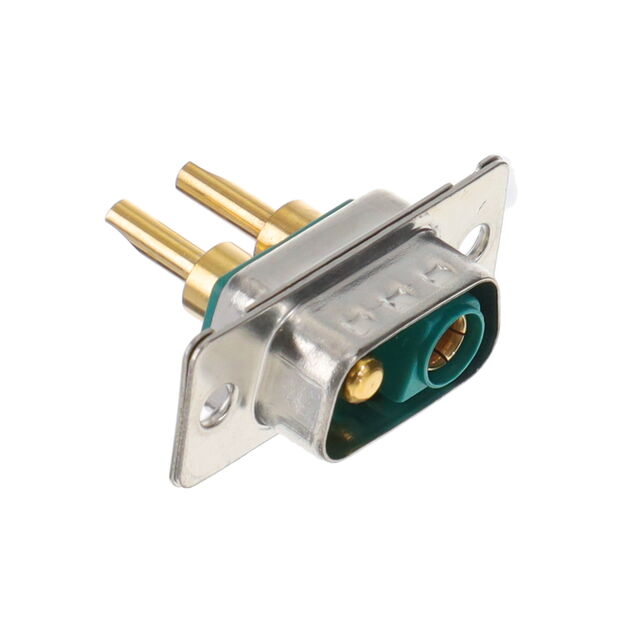

302W2CPXX41A10X

Active

Amphenol CONEC

CONN D-SUB PLUG 2POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 2POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Flange Feature	Shell Size, Connector Layout	Contact Finish	Connector Type	Contact Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Number of Rows	Features	Material Flammability Rating	Termination	Dielectric Material	Contact Material	Backset Spacing	Backset Spacing	Color	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 302W2CPXX41A10X	10 A	Housing/Shell (Unthreaded)	1 (DE E) 2V2 2W2C	Gold	Male Pins Plug	Power	Combo D-Sub	-55 °C	125 °C	2	Free Hanging (In-Line)	1
Amphenol CONEC 302W2CPXX61A10X					Male Pins Plug
Amphenol CONEC 302W2CPXX56N40X		Housing/Shell (4-40)	1 (DE E) 2V2 2W2C	Gold	Male Pins Plug	Power	Combo D-Sub	-55 °C	125 °C	2	Through Hole Right Angle	1	Board Lock Grounding Indents Mounting Brackets	UL94 V-0	Solder	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	11.65 mm	0.459 "	Green	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position D-Sub, Combo Plug, Male Pins Connector

Technical documentation and resources

No documents available
