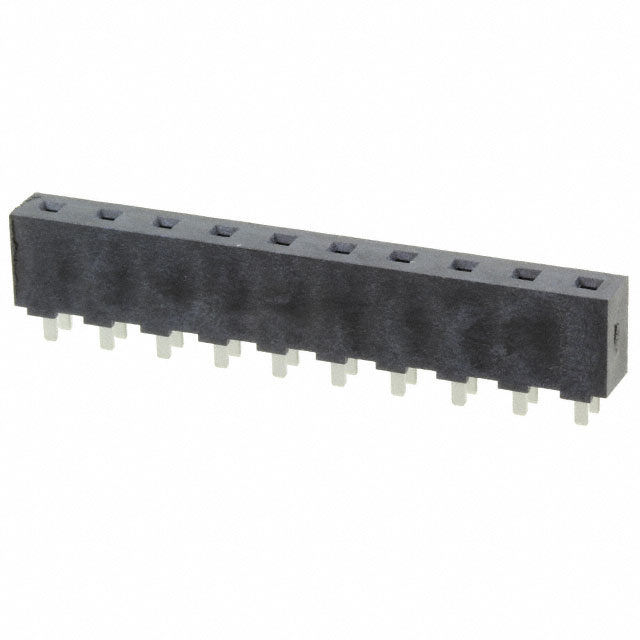

HPF-10-01-T-S - HPF-10-01-T-S

HPF-10-01-T-S

Active
Samtec Inc.

CONNECTOR, RCPT, 10POS, 1ROW, 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHPF Series Other Related Documents 01HPF Datasheet+2
HPF-10-01-T-S - HPF-10-01-T-S

HPF-10-01-T-S

Active
Samtec Inc.

CONNECTOR, RCPT, 10POS, 1ROW, 5.08MM

Deep-Dive with AI

DocumentsHPF Series Other Related Documents 01HPF Datasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationHPF-10-01-T-S
Connector TypeReceptacle
Contact Finish - PostTin
Contact Length - Post0.102 in
Contact Length - Post2.6 mm
Contact MaterialBeryllium Copper
Contact ShapeSquare
Contact TypeFemale Socket
Fastening TypePush-Pull
Insulation ColorBlack
Insulation Height8.92 mm
Insulation Height0.351 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions10
Number of Positions LoadedAll
Number of Rows1
Pitch - Mating5.08 mm
Pitch - Mating0.2 in
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 7.29
10$ 5.58
100$ 4.33
500$ 3.67
1000$ 3.43
NewarkEach 1$ 6.02
10$ 5.77
100$ 4.81
500$ 4.07
1000$ 3.49
2500$ 3.20
5000$ 3.10

Description

General part information

HPF-10 Series

10 Position Receptacle Connector 0.200" (5.08mm) Through Hole Tin
