1245-7.7"X10"
Active3M
RF EMI SHIELDING TAPE 10" X 7.7"
Deep-Dive with AI
Search across all available documentation for this part.
1245-7.7"X10"
Active3M
RF EMI SHIELDING TAPE 10" X 7.7"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1245-7.7"X10" | 1245 Series |
|---|---|---|
| Adhesive | Single Sided, Non-Conductive | Single Sided, Non-Conductive, Acrylic, Rubber Thermosetting, Conductive, Single Sided |
| Backing, Carrier | - | Copper Foil, Polyester Film |
| Color | - | Natural, Yellow |
| Length | 10 in | 10 - 108 ft |
| Length | 254 mm | 16.5 - 254 m |
| Length | - | 18 - 36 yd |
| Length | - | 36 " |
| Material | Embossed Copper Foil | Embossed Copper Foil, Aluminum Foil |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 130 °C |
| Shape | - | Roll |
| Shelf Life | 60 Months | 60 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C | 27 - 80 °F |
| Storage/Refrigeration Temperature [Min] | 10 °C | 10 °C |
| Tape Type | - | Copper Foil, Double Coated Film |
| Thickness | - | 0.0035 " |
| Thickness | - | 88.9 microns |
| Thickness | - | 0.089 mm |
| Thickness - Adhesive | - | 2.5 mils |
| Thickness - Adhesive | - | 0.0025 " |
| Thickness - Adhesive | - | 0.064 mm |
| Thickness - Backing, Carrier | - | 0.025 - 0.102 mm |
| Thickness - Backing, Carrier | - | 1 - 4 mils |
| Thickness - Backing, Carrier | - | 0.001 - 0.004 in |
| Thickness - Overall | - | 0.003 " |
| Thickness - Overall | - | 0.08 mm |
| Thickness - Overall [custom] | 0.004 " | 0.004 " |
| Thickness - Overall [custom] | 0.1 mm | 0.1 mm |
| Type | Shielding Tape | Shielding Tape, Shielding Sheet |
| Usage | - | EMI Shielding, Bonding |
| Width | 7.7 in | 0.25 - 7.7 in |
| Width | 195 mm | 0.75 - 195 mm |
| Width | - | 0.35 - 1.97 in |
| Width | - | 9 - 50 mm |
| Width | - | 0.625 - 19.05 mm |
| Width | - | 0.24 - 23 in |
| Width | - | 6.1 - 584.2 mm |
1245 Series
RF EMI SHIELDING TAPE 54'X0.38"
| Part | Adhesive | Thickness - Overall [custom] | Thickness - Overall [custom] | Shelf Life | Length | Length | Width [y] | Width [y] | Shelf Life Start | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Type | Material | Width | Width | Backing, Carrier | Color | Tape Type | Length | Usage | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Width | Thickness | Thickness | Thickness | Width [x] | Width [x] | Shape | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Thickness - Overall | Thickness - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Non-Conductive, Single Sided | 0.004 " | 0.1 mm | 60 Months | 16.5 m | 54 ft | 0.38 in | 9.65 mm | Date of Manufacture | 27 °C, 80 °F | 10 °C | Shielding Tape | Embossed Copper Foil | ||||||||||||||||||||||||||
Non-Conductive, Single Sided | 0.004 " | 0.1 mm | 60 Months | 16.5 m | 54 ft | Date of Manufacture | 27 °C, 80 °F | 10 °C | Shielding Tape | Embossed Copper Foil | 0.75 in | 19.1 mm | ||||||||||||||||||||||||||
Acrylic | 60 Months | 16.5 m | 54 ft | Date of Manufacture | 0.98 " | 25 mm | Copper Foil | Natural | Copper Foil | 18 yd | EMI Shielding | 0.041 mm | 1.6 mils | 0.0016 in | ||||||||||||||||||||||||
Rubber Thermosetting | 60 Months | 32.9 m | 108 ft | Date of Manufacture | 0.75 in | 0.75 in | Polyester Film | Yellow | Double Coated Film | 36 yd | Bonding | 0.025 mm | 1 mils | 0.001 " | 2.5 mils | 0.0025 " | 0.064 mm | 19.05 mm | 0.0035 " | 88.9 microns | 0.089 mm | |||||||||||||||||
Acrylic | 60 Months | 16.5 m | 54 ft | 0.35 in | 9 mm | Date of Manufacture | Copper Foil | Natural | Copper Foil | 18 yd | EMI Shielding | 0.041 mm | 1.6 mils | 0.0016 in | ||||||||||||||||||||||||
Non-Conductive, Single Sided | 0.004 " | 0.1 mm | 60 Months | 16.5 m | 54 ft | Date of Manufacture | 27 °C, 80 °F | 10 °C | Shielding Tape | Embossed Copper Foil | ||||||||||||||||||||||||||||
Non-Conductive, Single Sided | 0.004 " | 0.1 mm | 60 Months | 16.5 m | 54 ft | Date of Manufacture | 27 °C, 80 °F | 10 °C | Shielding Tape | Embossed Copper Foil | 0.25 in | 6.35 mm | ||||||||||||||||||||||||||
Non-Conductive, Single Sided | 0.004 " | 0.1 mm | 60 Months | 254 mm | 10 in | Date of Manufacture | 27 °C, 80 °F | 10 °C | Shielding Tape | Embossed Copper Foil | 7.7 in | 195 mm | ||||||||||||||||||||||||||
Acrylic | 60 Months | 16.5 m | 54 ft | Date of Manufacture | 0.75 in | 0.75 in | Copper Foil | Natural | Copper Foil | 18 yd | EMI Shielding | 0.041 mm | 1.6 mils | 0.0016 in | 19.05 mm | |||||||||||||||||||||||
Acrylic | 60 Months | 16.5 m | 54 ft | Date of Manufacture | Copper Foil | Natural | Copper Foil | 18 yd | EMI Shielding | 0.041 mm | 1.6 mils | 0.0016 in | 0.24 in | 6.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.34 | |
| 10 | $ 16.68 | |||
| 30 | $ 15.84 | |||
| 50 | $ 15.01 | |||
| 100 | $ 14.17 | |||
| 250 | $ 13.34 | |||
| 500 | $ 12.51 | |||
Description
General part information
1245 Series

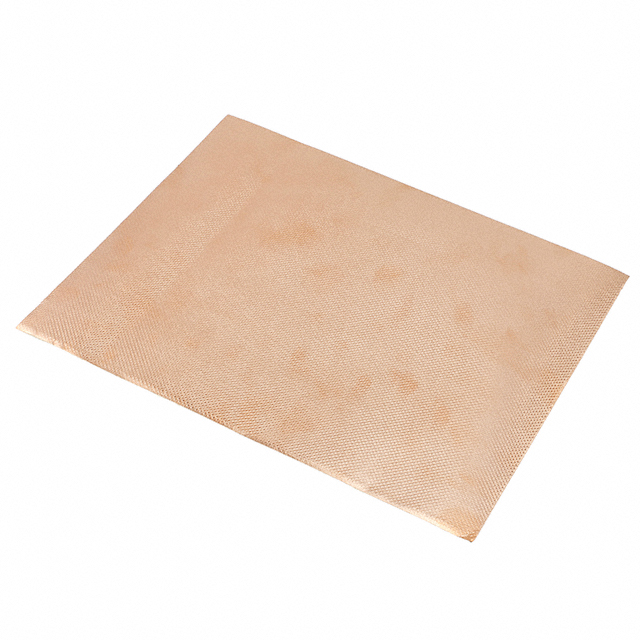

RF EMI Shielding Tape 1245 Embossed Copper Foil Non-Conductive, Single Sided 7.700" (195.00mm) X 10.000" (254.00mm) X 0.004" (0.10mm)
