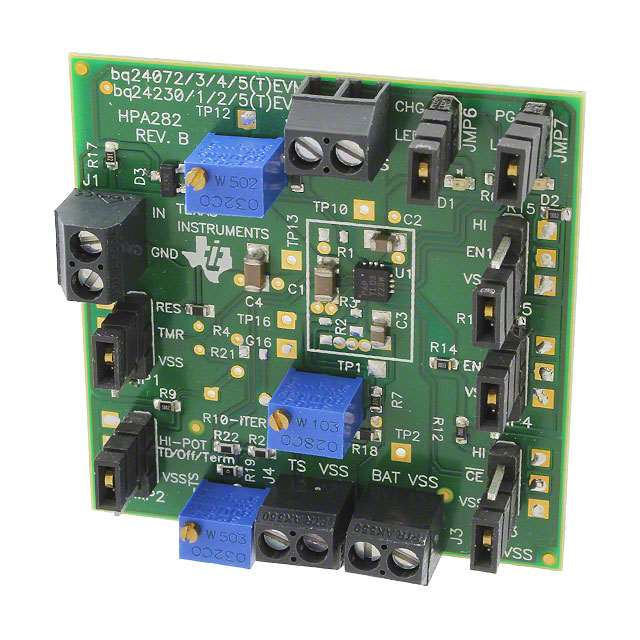

BQ24072TEVM
ActiveEVAL MODULE FOR BQ24072T
Deep-Dive with AI
Search across all available documentation for this part.
BQ24072TEVM
ActiveEVAL MODULE FOR BQ24072T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24072TEVM | BQ24072 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1.5 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Reverse Current, Over Voltage, Over Temperature, Short Circuit |
| Function | Battery Charger | Battery Charger |
| Interface | - | USB |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | -40 - 0 °C |
| Operating Temperature | - | 125 ¯C |
| Package / Case | - | 16-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Secondary Attributes | Charge Timer | Charge Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-VQFN (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24072T | BQ24072, BQ24072T |
| Voltage - Supply (Max) | - | 6.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24072 Series
Standalone 1-cell 1.5-A linear battery charger, Power Path, 4.2-V VBAT, Voltage-based TS w/ TD
| Part | Mounting Type | Voltage - Supply (Max) [Max] | Charge Current - Max [Max] | Programmable Features | Current - Charging | Battery Pack Voltage | Interface | Battery Chemistry | Operating Temperature [Min] | Operating Temperature [Max] | Fault Protection | Supplier Device Package | Package / Case | Number of Cells | Type | Supplied Contents | Function | Utilized IC / Part | Embedded | Secondary Attributes | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24072TRGTT | Surface Mount | 6.4 V | 1.5 A | Current, Timer | Constant - Programmable | 4.2 V | USB | Lithium Ion | 0 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | 16-VQFN (3x3) | 16-VFQFN Exposed Pad | 1 | |||||||
Texas Instruments BQ24072TRGTR | Surface Mount | 6.4 V | 1.5 A | Current, Timer | Constant - Programmable | 4.2 V | USB | Lithium Ion | 0 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | 16-VQFN (3x3) | 16-VFQFN Exposed Pad | 1 | |||||||
Texas Instruments BQ24072RGTR | Surface Mount | 6.4 V | 1.5 A | Current, Timer | Constant - Programmable | 4.2 V | USB | Lithium Ion | -40 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | 16-VQFN (3x3) | 16-VFQFN Exposed Pad | 1 | |||||||
Texas Instruments BQ24072EVM | Power Management | Board(s) | Battery Charger | BQ24072 | Charge Timer | Li-Ion / Li-Pol (1 Cell) | |||||||||||||||
Texas Instruments BQ24072TEVM | Power Management | Board(s) | Battery Charger | BQ24072T | Charge Timer | Li-Ion / Li-Pol (1 Cell) | |||||||||||||||
Texas Instruments BQ24072RGTT | Surface Mount | 6.4 V | 1.5 A | Current, Timer | Constant - Programmable | 4.2 V | USB | Lithium Ion | -40 °C | 125 ¯C | Over Temperature, Over Voltage, Reverse Current, Short Circuit | 16-VQFN (3x3) | 16-VFQFN Exposed Pad | 1 |
Description
General part information
BQ24072 Series
The BQ2407xT series of devices are integrated Li-ion linear chargers and system power path management devices targeted at space-limited portable applications. The devices operate from either a USB port or AC adapter and support charge currents up to 1.5A. The input voltage range with input over-voltage protection supports unregulated adapters. The USB input current limit accuracy and start up sequence allow the BQ2407xT to meet USB-IF inrush current specification. Additionally, the input dynamic power management (VIN- DPM) prevents the charger from crashing incorrectly configure USB sources.
The BQ2407xT features dynamic power path management (DPPM) that powers the system while simultaneously and independently charging the battery. The DPPM circuit reduces the charge current when the input current limit causes the system output to fall to the DPPM threshold; thus, supplying the system load at all times while monitoring the charge current separately. This feature reduces the number of charge and discharge cycles on the battery, allows for proper charge termination and enables the system to run with a defective or absent battery pack.
Additionally, the regulated system input enables instant system turn-on when plugged in even with a totally discharged battery. The power-path management architecture also permits the battery to supplement the system current requirements when the adapter cannot deliver the peak system currents, enabling the use of a smaller adapter.
