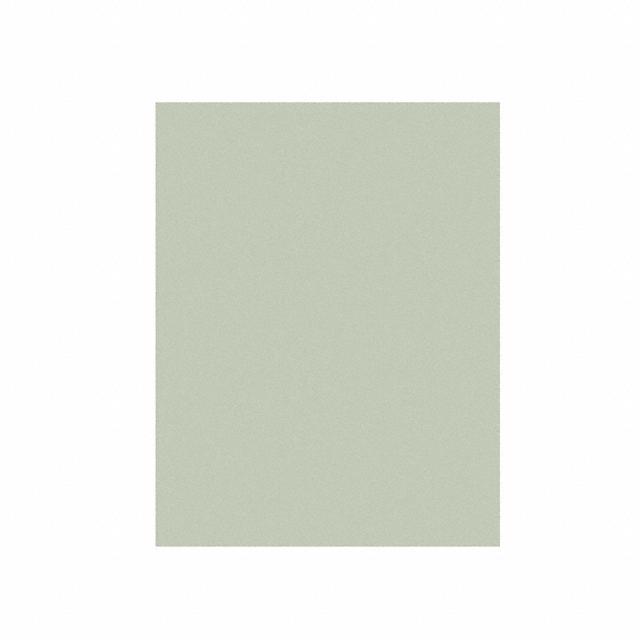

30MIC 3M668X PSA SHEET 3X8"

Active

3M (TC)

LAPPING FILM DIAMOND 30U 8" X 3"

Search across all available documentation for this part.

Active

3M (TC)

LAPPING FILM DIAMOND 30U 8" X 3"

Technical Specifications

Parameters and characteristics for this part

Specification	30MIC 3M668X PSA SHEET 3X8"

Abrasive Material	Diamond
Applications	Fiber Optic Connector Polishing
Color	Green
Length	203.2 mm
Length	8 in
Micron Size	30 µ
Type	Lapping Film
Width [x]	76.2 mm
Width [x]	3 in

Part	Diameter [diameter]	Diameter [diameter]	Micron Size	Applications	Type	Abrasive Material	Color	Length	Length	Width [x]	Width [x]	Length [x]
3M (TC) 15MIC 3M668X PSA DISC 8"	8 in	203.2 mm	15 µ	Fiber Optic Connector Polishing	Lapping Film	Silicon Carbide
3M (TC) 6MIC 3M668X PSA DISC 4"	4 in	101.6 mm	6 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Brown
3M (TC) 9MIC 3M668X PSA DISC 4"	4 in	101.6 mm	9 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Blue
3M (TC) 1MIC 3M668X PSA DISC 4"	4 in	101.6 mm	1 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Lavender
3M (TC) 9MIC 3M668X PSA DISC 8"	8 in	203.2 mm	9 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Blue
3M (TC) 3MIC 3M668X PSA DISC 6"	6 in	152.4 mm	3 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Pink
3M (TC) 30MIC 3M668X PSA SHEET 3X8"			30 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Green	203.2 mm	8 in	76.2 mm	3 in
3M (TC) .5MIC 3M668X PSA SHEET 9X11"			0.5 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	White	279.4 mm		228.6 mm	9 in	11 in
3M (TC) 30MIC 3M668X PSA SHEET 6X6"			30 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Green	152.4 mm	6 in	152.4 mm	6 in
3M (TC) 9MIC 3M668X PSA SHEET 3X8"			9 µ	Fiber Optic Connector Polishing	Lapping Film	Diamond	Blue	203.2 mm	8 in	76.2 mm	3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.41

General part information

Lapping Film Diamond 30µ 3.00" (76.20mm) X 8.00" (203.20mm) Dia

Technical documentation and resources
