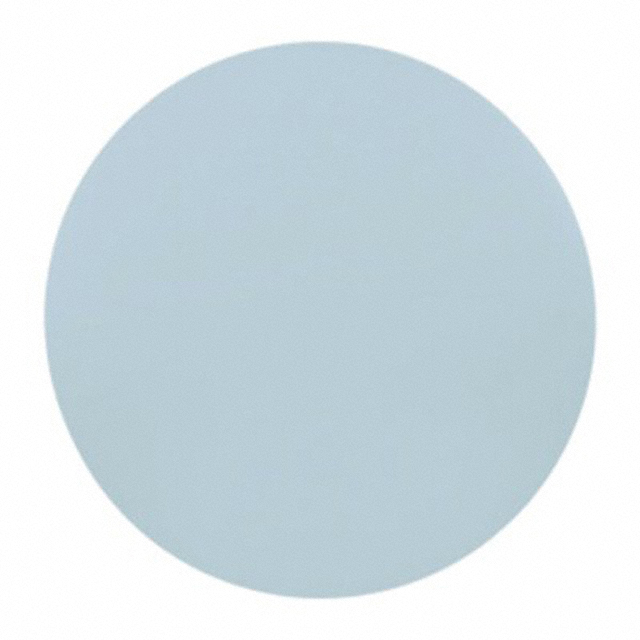

9MIC 3M668X PSA DISC 8"
Active3M (TC)
LAPPING FILM DIAMOND 9U 8"
Deep-Dive with AI
Search across all available documentation for this part.
9MIC 3M668X PSA DISC 8"
Active3M (TC)
LAPPING FILM DIAMOND 9U 8"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9MIC 3M668X PSA DISC 8" |
|---|---|
| Abrasive Material | Diamond |
| Applications | Fiber Optic Connector Polishing |
| Color | Blue |
| Diameter [diameter] | 8 in |
| Diameter [diameter] | 203.2 mm |
| Micron Size | 9 µ |
| Type | Lapping Film |
3M668X Series
| Part | Diameter [diameter] | Diameter [diameter] | Micron Size | Applications | Type | Abrasive Material | Color | Length | Length | Width [x] | Width [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 8 in | 203.2 mm | 15 µ | Fiber Optic Connector Polishing | Lapping Film | Silicon Carbide | ||||||
3M (TC) | 4 in | 101.6 mm | 6 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Brown | |||||
3M (TC) | 4 in | 101.6 mm | 9 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Blue | |||||
3M (TC) | 4 in | 101.6 mm | 1 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Lavender | |||||
3M (TC) | 8 in | 203.2 mm | 9 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Blue | |||||
3M (TC) | 6 in | 152.4 mm | 3 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Pink | |||||
3M (TC) | 30 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Green | 203.2 mm | 8 in | 76.2 mm | 3 in | |||
3M (TC) | 0.5 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | White | 279.4 mm | 228.6 mm | 9 in | 11 in | |||
3M (TC) | 30 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Green | 152.4 mm | 6 in | 152.4 mm | 6 in | |||
3M (TC) | 9 µ | Fiber Optic Connector Polishing | Lapping Film | Diamond | Blue | 203.2 mm | 8 in | 76.2 mm | 3 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 250 | $ 28.29 | |
Description
General part information
3M668X Series
Lapping Film Diamond 9µ X 8.00" (203.20mm) Dia
