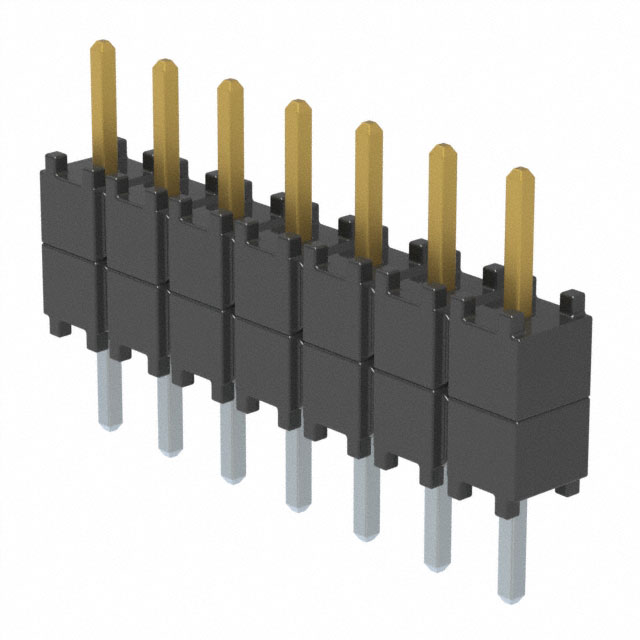

DW-07-07-F-S-200

Active

Samtec Inc.

CONN HDR 7POS 0.1 STACK T/H GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DW-07-07-F-S-200

Active

Samtec Inc.

CONN HDR 7POS 0.1 STACK T/H GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DW-07-07-F-S-200

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	3 Áin
Contact Finish Thickness - Post (Mating)	0.076 Ám
Length - Overall Pin [x]	10.922 mm
Length - Overall Pin [x]	0.43 in
Length - Post (Mating) [x]	3.048 mm
Length - Post (Mating) [x]	0.12 in
Length - Tail [x]	0.11 in
Length - Tail [x]	2.794 mm
Mounting Type	Through Hole
Number of Positions	7
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

DW-07-07 Series

Part	Number of Rows	Mounting Type	Number of Positions	Termination	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Color	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. DW-07-07-S-T-300	3	Through Hole	21	Solder	0.02 in	0.508 mm	2.54 mm	0.1 in	30 µin	0.76 µm	0.11 in	2.794 mm	Gold	0.1 in	2.54 mm	Black	10.922 mm	0.43 in	0.3 in	7.62 mm
Samtec Inc. DW-07-07-F-D-320	2	Through Hole	14	Solder			2.54 mm	0.1 in	3 Áin	0.076 Ám	0.11 in	2.794 mm	Gold	0.1 in	2.54 mm	Black	10.922 mm	0.43 in			0.32 in	8.128 mm
Samtec Inc. DW-07-07-T-S-200	1	Through Hole	7	Solder	0.12 in	3.048 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin			Black	10.922 mm	0.43 in
Samtec Inc. DW-07-07-S-D-200	2	Through Hole	14	Solder	0.12 in	3.048 mm	2.54 mm	0.1 in	30 µin	0.76 µm	0.11 in	2.794 mm	Gold	0.1 in	2.54 mm	Black	10.922 mm	0.43 in
Samtec Inc. DW-07-07-T-S-270	1	Through Hole	7	Solder	0.05 in	1.27 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin			Black	10.922 mm	0.43 in	0.27 in	6.858 mm
Samtec Inc. DW-07-07-T-S-300-001	1	Through Hole	7	Solder	0.02 in	0.508 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin			Black	10.922 mm	0.43 in	0.3 in	7.62 mm
Samtec Inc. DW-07-07-T-S-200-002	1	Through Hole	7	Solder	0.12 in	3.048 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin			Black	10.922 mm	0.43 in
Samtec Inc. DW-07-07-T-D-250	2	Through Hole	14	Solder	0.07 in	1.778 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin	0.1 in	2.54 mm	Black	10.922 mm	0.43 in	0.25 in	6.35 mm
Samtec Inc. DW-07-07-F-S-200	1	Through Hole	7	Solder	0.12 in	3.048 mm	2.54 mm	0.1 in	3 Áin	0.076 Ám	0.11 in	2.794 mm	Gold			Black	10.922 mm	0.43 in
Samtec Inc. DW-07-07-T-S-235	1	Through Hole	7	Solder	0.085 in	2.159 mm	2.54 mm	0.1 in			0.11 in	2.794 mm	Tin			Black	10.922 mm	0.43 in	0.235 in	5.969 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.03

Description

General part information

DW-07-07 Series

7 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
