DW-07-07-T-S-200 - DW-07-07-T-S-200

DW-07-07-T-S-200

Active
Samtec Inc.

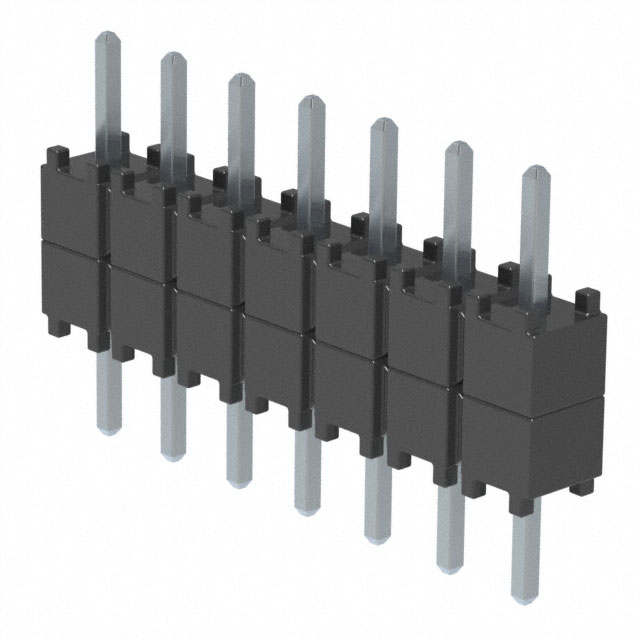

CONN HDR 7POS 0.1 STACK T/H TIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDW Datasheet+1
DW-07-07-T-S-200 - DW-07-07-T-S-200

DW-07-07-T-S-200

Active
Samtec Inc.

CONN HDR 7POS 0.1 STACK T/H TIN

Deep-Dive with AI

DocumentsDatasheetDW Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationDW-07-07-T-S-200
ColorBlack
Contact Finish - Post (Mating)Tin
Length - Overall Pin [x]10.922 mm
Length - Overall Pin [x]0.43 in
Length - Post (Mating) [x]3.048 mm
Length - Post (Mating) [x]0.12 in
Length - Tail [x]0.11 in
Length - Tail [x]2.794 mm
Mounting TypeThrough Hole
Number of Positions7
Number of Rows1
Pitch [x]2.54 mm
Pitch [x]0.1 in
TerminationSolder

DW-07-07 Series

PartNumber of RowsMounting TypeNumber of PositionsTerminationLength - Post (Mating) [x]Length - Post (Mating) [x]Pitch [x]Pitch [x]Contact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Length - Tail [x]Length - Tail [x]Contact Finish - Post (Mating)Row Spacing [x]Row SpacingColorLength - Overall Pin [x]Length - Overall Pin [x]Length - Stack Height [x]Length - Stack Height [x]Length - Stack Height [z]Length - Stack Height [z]
Samtec Inc.
DW-07-07-S-T-300
3
Through Hole
21
Solder
0.02 in
0.508 mm
2.54 mm
0.1 in
30 µin
0.76 µm
0.11 in
2.794 mm
Gold
0.1 in
2.54 mm
Black
10.922 mm
0.43 in
0.3 in
7.62 mm
Samtec Inc.
DW-07-07-F-D-320
2
Through Hole
14
Solder
2.54 mm
0.1 in
3 Áin
0.076 Ám
0.11 in
2.794 mm
Gold
0.1 in
2.54 mm
Black
10.922 mm
0.43 in
0.32 in
8.128 mm
Samtec Inc.
DW-07-07-T-S-200
1
Through Hole
7
Solder
0.12 in
3.048 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
Black
10.922 mm
0.43 in
Samtec Inc.
DW-07-07-S-D-200
2
Through Hole
14
Solder
0.12 in
3.048 mm
2.54 mm
0.1 in
30 µin
0.76 µm
0.11 in
2.794 mm
Gold
0.1 in
2.54 mm
Black
10.922 mm
0.43 in
Samtec Inc.
DW-07-07-T-S-270
1
Through Hole
7
Solder
0.05 in
1.27 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
Black
10.922 mm
0.43 in
0.27 in
6.858 mm
Samtec Inc.
DW-07-07-T-S-300-001
1
Through Hole
7
Solder
0.02 in
0.508 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
Black
10.922 mm
0.43 in
0.3 in
7.62 mm
Samtec Inc.
DW-07-07-T-S-200-002
1
Through Hole
7
Solder
0.12 in
3.048 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
Black
10.922 mm
0.43 in
Samtec Inc.
DW-07-07-T-D-250
2
Through Hole
14
Solder
0.07 in
1.778 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
0.1 in
2.54 mm
Black
10.922 mm
0.43 in
0.25 in
6.35 mm
Samtec Inc.
DW-07-07-F-S-200
1
Through Hole
7
Solder
0.12 in
3.048 mm
2.54 mm
0.1 in
3 Áin
0.076 Ám
0.11 in
2.794 mm
Gold
Black
10.922 mm
0.43 in
Samtec Inc.
DW-07-07-T-S-235
1
Through Hole
7
Solder
0.085 in
2.159 mm
2.54 mm
0.1 in
0.11 in
2.794 mm
Tin
Black
10.922 mm
0.43 in
0.235 in
5.969 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.70
10$ 0.53
100$ 0.41
500$ 0.34
1000$ 0.34

Description

General part information

DW-07-07 Series

7 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
