SMS-112-01-G-S

Active

Samtec Inc.

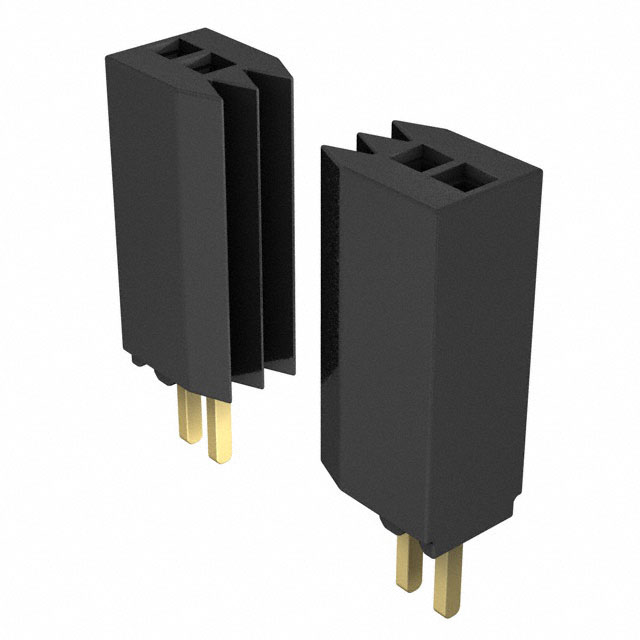

CONN RCPT 12POS 0.05 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 12POS 0.05 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SMS-112-01-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

Part	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Material	Fastening Type	Insulation Height	Insulation Height	Contact Shape	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Color	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
Samtec Inc. SMS-112-01-G-D	Receptacle	0.05 in	1.27 mm	Gold	-55 °C	125 °C	2	Phosphor Bronze	Push-Pull	0.335 "	8.51 mm	Square	2.54 mm	0.1 in	5 A	Black	24	2.54 mm	0.1 in	Solder	All	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Through Hole	Forked	3 µin	0.076 µm	Gold
Samtec Inc. SMS-112-01-G-S	Receptacle	0.05 in	1.27 mm	Gold	-55 °C	125 °C	1	Phosphor Bronze	Push-Pull	0.335 "	8.51 mm	Square	2.54 mm	0.1 in	5 A	Black	12			Solder	All	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Through Hole	Forked	3 µin	0.076 µm	Gold
Samtec Inc. SMS-112-01-S-S	Receptacle	0.05 in	1.27 mm	Gold	-55 °C	125 °C	1	Phosphor Bronze	Push-Pull	0.335 "	8.51 mm	Square	2.54 mm	0.1 in	5 A	Black	12			Solder	All	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Through Hole	Forked			Tin
Samtec Inc. SMS-112-01-S-D	Receptacle	0.05 in	1.27 mm	Gold	-55 °C	125 °C	2	Phosphor Bronze	Push-Pull	0.335 "	8.51 mm	Square	2.54 mm	0.1 in	5 A	Black	24	2.54 mm	0.1 in	Solder	All	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Through Hole	Forked			Tin
