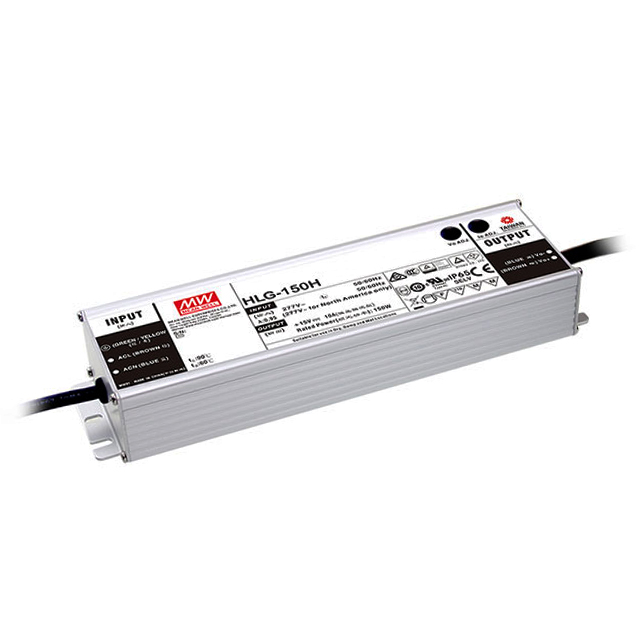

HLG-150H-42A
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 38-46V 3.6A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-150H-42A
ActiveMEAN WELL USA Inc.
LED DRVR CC/CV AC/DC 38-46V 3.6A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-150H-42A |
|---|---|
| Approval Agency | RCM, cURus, CB, CE, TUV, CCC, PSE |
| Current - Output (Max) [Max] | 3.6 A |
| Efficiency | 94 % |
| Features | OTP, SCP, OVP, OCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 151 W |
| Ratings | IP65 |
| Size / Dimension [x] | 8.03 " |
| Size / Dimension [x] | 204 mm |
| Size / Dimension [y] | 68 mm |
| Size / Dimension [y] | 2.68 " |
| Size / Dimension [z] | 38.8 mm |
| Size / Dimension [z] | 1.53 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 46 V |
| Voltage - Output [Min] | 38 V |
HLG-150H Series
| Part | Voltage - Output [Max] | Voltage - Output [Min] | Topology | Efficiency | Type | Voltage - Isolation | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Current - Output (Max) | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Number of Outputs | Mounting Type | Features | Termination Style | Dimming | Ratings | Current - Output (Max) [Max] | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | 54 V | 27 V | AC DC Converter | 94 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | 2.8 A | CB CCC CE cURus PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP67 | ||
MEAN WELL USA Inc. | AC DC Converter | 91.5 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 150 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | IP65 | 12.5 A | 12 V | ||||
MEAN WELL USA Inc. | 24 V | 12 V | AC DC Converter | 93 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | IP67 | 6.3 A | |||
MEAN WELL USA Inc. | 46 V | 38 V | AC DC Converter | 94 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | IP65 | 3.6 A | |||
MEAN WELL USA Inc. | AC DC Converter | 94 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | 2.8 A | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP65 | 54 V | |||
MEAN WELL USA Inc. | AC DC Converter | 93 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP65 | 6.3 A | 24 V | |||
MEAN WELL USA Inc. | 36 V | 18 V | AC DC Converter | 93.5 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP67 | 4.2 A | ||
MEAN WELL USA Inc. | AC DC Converter | 94 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 151 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP65 | 3.6 A | 42 V | |||
MEAN WELL USA Inc. | AC DC Converter | 92 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 150 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | Analog PWM | IP65 | 10 A | 15 VDC | |||
MEAN WELL USA Inc. | AC DC Converter | 94 % | Constant Current Voltage | 3750 V | 90 VAC | 305 VAC | CB CCC CE cURus EAC KC PSE RCM TUV | 68 mm | 38.8 mm | 1.53 in | 8.03 " | 204 mm | 2.68 " | 90 °C | -40 °C | 154 W | 1 | Chassis Mount | OCP OTP OVP SCP | Wire Leads | IP65 | 3.2 A | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 63.08 | |
| 5 | $ 57.68 | |||
| 10 | $ 55.49 | |||
| 25 | $ 52.72 | |||
Description
General part information
HLG-150H Series
3.6A 38 ~ 46V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
