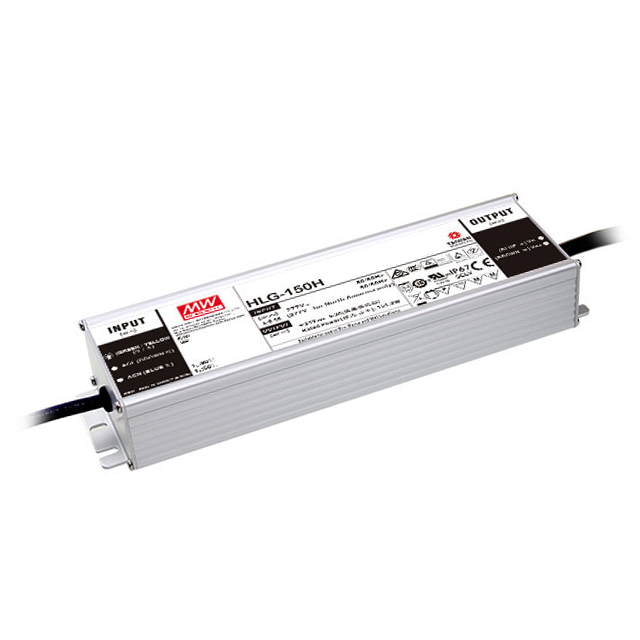

HLG-150H-24

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 12-24V 6.3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-150H-24

Active

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 12-24V 6.3A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-150H-24

Approval Agency	RCM, cURus, CB, CE, TUV, CCC, PSE
Current - Output (Max) [Max]	6.3 A
Efficiency	93 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	151 W
Ratings	IP67
Size / Dimension [x]	8.03 "
Size / Dimension [x]	204 mm
Size / Dimension [y]	68 mm
Size / Dimension [y]	2.68 "
Size / Dimension [z]	38.8 mm
Size / Dimension [z]	1.53 in
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	24 V
Voltage - Output [Min]	12 V

HLG-150H Series

Part	Voltage - Output [Max]	Voltage - Output [Min]	Topology	Efficiency	Type	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max)	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Mounting Type	Features	Termination Style	Dimming	Ratings	Current - Output (Max) [Max]	Voltage - Output
MEAN WELL USA Inc. HLG-150H-54B	54 V	27 V	AC DC Converter	94 %	Constant Current Voltage	3750 V	90 VAC	305 VAC	2.8 A	CB CCC CE cURus PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP67
MEAN WELL USA Inc. HLG-150H-12AB			AC DC Converter	91.5 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	150 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads		IP65	12.5 A	12 V
MEAN WELL USA Inc. HLG-150H-24	24 V	12 V	AC DC Converter	93 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads		IP67	6.3 A
MEAN WELL USA Inc. HLG-150H-42A	46 V	38 V	AC DC Converter	94 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads		IP65	3.6 A
MEAN WELL USA Inc. HLG-150H-54AB			AC DC Converter	94 %	Constant Current Voltage	3750 V	90 VAC	305 VAC	2.8 A	CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP65		54 V
MEAN WELL USA Inc. HLG-150H-24AB			AC DC Converter	93 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP65	6.3 A	24 V
MEAN WELL USA Inc. HLG-150H-36B	36 V	18 V	AC DC Converter	93.5 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP67	4.2 A
MEAN WELL USA Inc. HLG-150H-42AB			AC DC Converter	94 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	151 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP65	3.6 A	42 V
MEAN WELL USA Inc. HLG-150H-15AB			AC DC Converter	92 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	150 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads	Analog PWM	IP65	10 A	15 VDC
MEAN WELL USA Inc. HLG-150H-48AB			AC DC Converter	94 %	Constant Current Voltage	3750 V	90 VAC	305 VAC		CB CCC CE cURus EAC KC PSE RCM TUV	68 mm	38.8 mm	1.53 in	8.03 "	204 mm	2.68 "	90 °C	-40 °C	154 W	1	Chassis Mount	OCP OTP OVP SCP	Wire Leads		IP65	3.2 A	48 V
