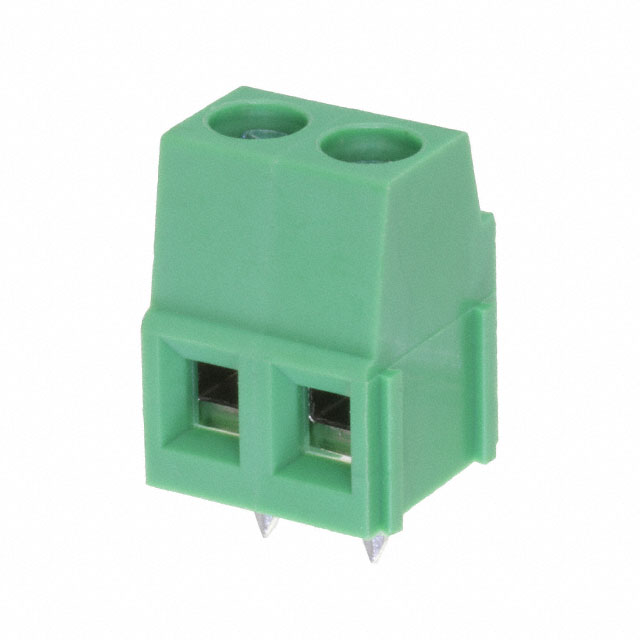

EB20-02-C - EB20-02-C

EB20-02-C

Active
Adam Tech

EURO BLOCK 2P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXCFR2.E333935- Terminal BlocksDatasheet+2
EB20-02-C - EB20-02-C

EB20-02-C

Active
Adam Tech

EURO BLOCK 2P

Deep-Dive with AI

DocumentsXCFR2.E333935- Terminal BlocksDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationEB20-02-C
ColorGreen
Contact Material - Plating [custom]Brass - Tin Plated
Current10 A
FeaturesInterlocking (Side)
Housing MaterialThermoplastic
Mating OrientationHorizontal with Board
Mounting TypeThrough Hole
Number of Levels1
Operating Temperature [Max]115 °C
Operating Temperature [Min]-40 °C
Pitch [x]5 mm
Pitch [x]0.197 in
Positions Per Level2
Screw Material - PlatingSteel, Zinc Plated
Screw ThreadM2.5
Voltage300 V
Wire Gauge [Max]24 AWG
Wire Gauge [Min]12 AWG
Wire TerminationScrew - Rising Cage Clamp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.55
10$ 0.86
25$ 0.73
50$ 0.65
100$ 0.60
250$ 0.55
500$ 0.52
1000$ 0.50
5000$ 0.47

Description

General part information

EB20 Series

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
