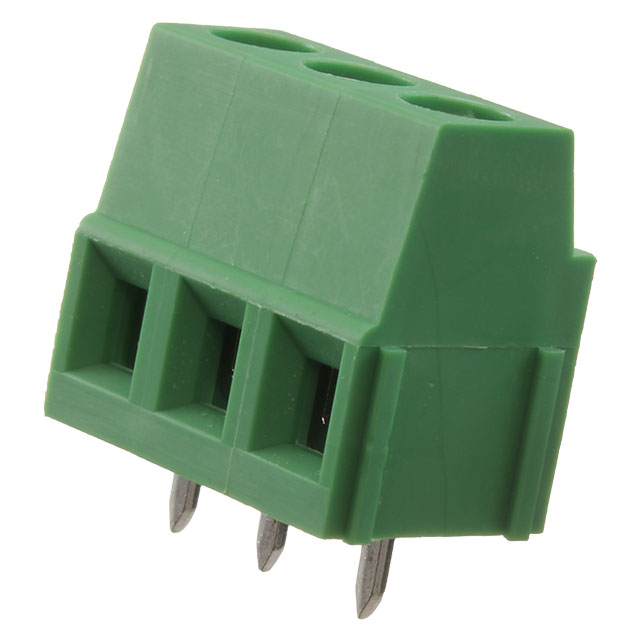

EB20-03-C

Active

Adam Tech

EURO BLOCK 3P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 3P

Technical Specifications

Parameters and characteristics for this part

Specification	EB20-03-C

Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	10 A
Features	Interlocking (Side)
Housing Material	Thermoplastic
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Voltage	300 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG
Wire Termination	Screw - Rising Cage Clamp

Part	Screw Thread	Housing Material	Current	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Termination	Screw Material - Plating	Mating Orientation	Positions Per Level	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Voltage	Features	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type
Adam Tech EB20-03-C	M2.5	Thermoplastic	10 A	-40 °C	115 °C	Green	Screw - Rising Cage Clamp	Steel Zinc Plated	Horizontal with Board	3	5 mm	0.197 in	Brass - Tin Plated	300 V	Interlocking (Side)	1	12 AWG	24 AWG	Through Hole
Adam Tech EB20-02-C	M2.5	Thermoplastic	10 A	-40 °C	115 °C	Green	Screw - Rising Cage Clamp	Steel Zinc Plated	Horizontal with Board	2	5 mm	0.197 in	Brass - Tin Plated	300 V	Interlocking (Side)	1	12 AWG	24 AWG	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	400	$ 0.47

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
