Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS74001DPTT | TPS740 Series |
|---|---|---|
| Control Features | Enable | Enable |
| Current - Output | 1.5 A | 1.5 A |
| Current - Quiescent (Iq) | 3 mA | 3 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Regulators | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Output Type | - | 27.03 °C/W |
| Package / Case | 5-VSFN Exposed Pad | 8-TSSOP, 8-MSOP, 5-VSFN Exposed Pad |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Protection Features | Under Voltage Lockout (UVLO), Over Current, Over Temperature | Under Voltage Lockout (UVLO), Over Current, Over Temperature |

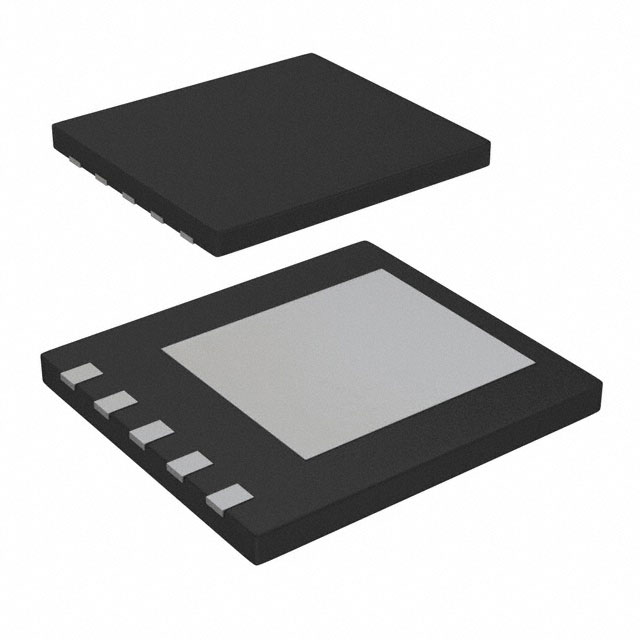

| Supplier Device Package | 5-VSON (10x11) | 5-VSON (10x11) |
| Voltage - Input (Max) [Max] | 6 V | 6 V |
| Voltage - Output (Max) [Max] | 3.6 V | 3.6 V |
| Voltage - Output (Min/Fixed) | - | 1.2 V |
| Voltage - Output (Min/Fixed) [Min] | 0.9 V | 0.9 V |
| Voltage Dropout (Max) | 0.3 V | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS740 Series
1.5-A, low-VIN (1.2-V), ultra-low-dropout voltage regulator
| Part | Control Features | Number of Regulators | Voltage - Input (Max) [Max] | Mounting Type | Voltage Dropout (Max) | Package / Case | Package / Case | Package / Case | Current - Output | Output Configuration | Voltage - Output (Min/Fixed) [Min] | Protection Features | Output Type | Voltage - Output (Max) [Max] | Current - Quiescent (Iq) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Output (Min/Fixed) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS74001DGKRThe TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C.
The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C. | Enable | 1 | 6 V | Surface Mount | 0.3 V | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 1.5 A | Positive | 0.9 V | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Adjustable | 3.6 V | 3 mA | 125 °C | -40 °C | |||
Texas Instruments TPS74001DPTTLinear Voltage Regulator IC Positive Adjustable 1 Output 1.5A 5-VSON (10x11) | Enable | 1 | 6 V | Surface Mount | 0.3 V | 5-VSFN Exposed Pad | 1.5 A | Positive | 0.9 V | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Adjustable | 3.6 V | 3 mA | 125 °C | -40 °C | 5-VSON (10x11) | ||||
Texas Instruments TPS74012DGKTThe TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C.
The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
The TPS740xx is available in an 8-pin power MSOP package and a 5-pin Jr S-PAK. Its operating temparature range is –40°C to +125°C. | Enable | 1 | 6 V | Surface Mount | 0.3 V | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | 1.5 A | Positive | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | 3 mA | 125 °C | -40 °C | 1.2 V | 27.03 °C/W |
Description
General part information
TPS740 Series
The TPS740xx is a wide bandwidth, very low-dropout, 1.5-A voltage regulator ideal for powering microprocessors.
The TPS740xx uses a bias input supply to allow very low voltage of a main input supply. The main input supply operates from 1.2 V to 6.0 V and the bias input supply requires between 3.0 V to 6.0 V for proper operation. The TPS740xx offers adjustable output voltages down to 0.9 V.
The TPS740xx requires a minimum of output capacitance. A small 2.2-µF ceramic capacitor is enough for its stability.
