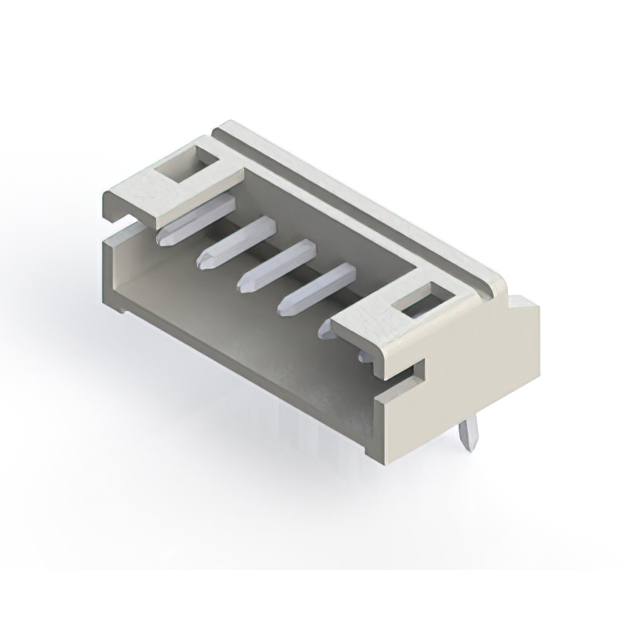

140-506-415-000
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 6 P.C
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
140-506-415-000
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 6 P.C
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 140-506-415-000 | 140-506 Series |
|---|---|---|
| Color | - | Natural |
| Connector Type | Header | Receptacle, Header |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Termination | - | Crimp |
| Contact Type | Male Pin | Female Socket, Male Pin |
| Current Rating (Amps) | 2 A | 2 A |
| Fastening Type | Detent Lock | Detent Lock |
| Features | - | Polarizing Key, Solder Retention |
| Insulation Color | Natural | Natural |
| Insulation Height | 0.197 in | 0.197 - 0.24 in |
| Insulation Height | 5 mm | 5 - 6.1 mm |
| Insulation Height | - | 5.51 mm |
| Insulation Height | - | 0.217 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T, Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line), Surface Mount, Right Angle, Surface Mount, Through Hole, Through Hole, Right Angle |
| Note | - | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 - -25 °C |
| Pitch | - | 0.079 in |
| Pitch | - | 2 mm |
| Pitch - Mating [x] | 0.079 in | 0.079 in |
| Pitch - Mating [x] | 2 mm | 2 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Kinked Pin, Solder | Solder, Kinked Pin, Solder |
| Voltage Rating | 100 VAC | 100 VAC |
140-506 Series
CONN RCPT HSG 6POS 2.00MM
| Part | Insulation Material | Note | Contact Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Color | Number of Positions | Connector Type | Pitch [x] | Pitch [x] | Number of Rows | Features | Contact Material | Style | Termination | Material Flammability Rating | Contact Finish - Post | Insulation Color | Number of Positions Loaded | Pitch - Mating [x] | Pitch - Mating [x] | Contact Shape | Insulation Height [custom] | Insulation Height [custom] | Shrouding | Current Rating (Amps) | Voltage Rating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. 140-506-210-011 | Polyamide (PA66), Nylon 6/6 | Contacts Not Included | Female Socket | Crimp | -25 °C | 85 °C | Detent Lock | Free Hanging (In-Line) | Natural | 6 | Receptacle | 0.079 in | 2 mm | 1 | Polarizing Key | |||||||||||||||||
EDAC Inc. 140-506-417-060 | Nylon 9T, Polyamide (PA9T) | Male Pin | -25 °C | 85 °C | Detent Lock | Surface Mount, Right Angle | 6 | Header | 1 | Solder Retention | Brass | Board to Cable/Wire | Solder | UL94 V-0 | Tin | Natural | All | 0.079 in | 2 mm | Square | 5.51 mm | 0.217 in | Shrouded - 4 Wall | 2 A | 100 VAC | |||||||
EDAC Inc. 140-506-417-011 | Liquid Crystal Polymer (LCP) | Male Pin | -40 °C | 105 ░C | Detent Lock | Surface Mount | 6 | Header | 1 | Solder Retention | Brass | Board to Cable/Wire | Solder | UL94 V-0 | Tin | Natural | All | 0.079 in | 2 mm | Square | 5.51 mm | 0.217 in | Shrouded - 4 Wall | 2 A | 100 VAC | |||||||
EDAC Inc. 140-506-415-001 | Polyamide (PA66), Nylon 6/6 | Male Pin | -40 °C | 105 ░C | Detent Lock | Through Hole | 6 | Header | 1 | Brass | Board to Cable/Wire | Kinked Pin, Solder | UL94 V-0 | Tin | Natural | All | 0.079 in | 2 mm | Square | Shrouded - 4 Wall | 2 A | 100 VAC | 0.24 in | 6.1 mm | ||||||||
EDAC Inc. 140-506-415-101 | Polyamide (PA66), Nylon 6/6 | Male Pin | -40 °C | 105 ░C | Detent Lock | Through Hole | 6 | Header | 1 | Brass | Board to Cable/Wire | Solder | UL94 V-0 | Tin | Natural | All | 0.079 in | 2 mm | Square | Shrouded - 4 Wall | 2 A | 100 VAC | 0.24 in | 6.1 mm | ||||||||
EDAC Inc. 140-506-415-000 | Polyamide (PA66), Nylon 6/6 | Male Pin | -40 °C | 105 ░C | Detent Lock | Through Hole, Right Angle | 6 | Header | 1 | Brass | Board to Cable/Wire | Kinked Pin, Solder | UL94 V-0 | Tin | Natural | All | 0.079 in | 2 mm | Square | Shrouded - 4 Wall | 2 A | 100 VAC | 0.197 in | 5 mm |
