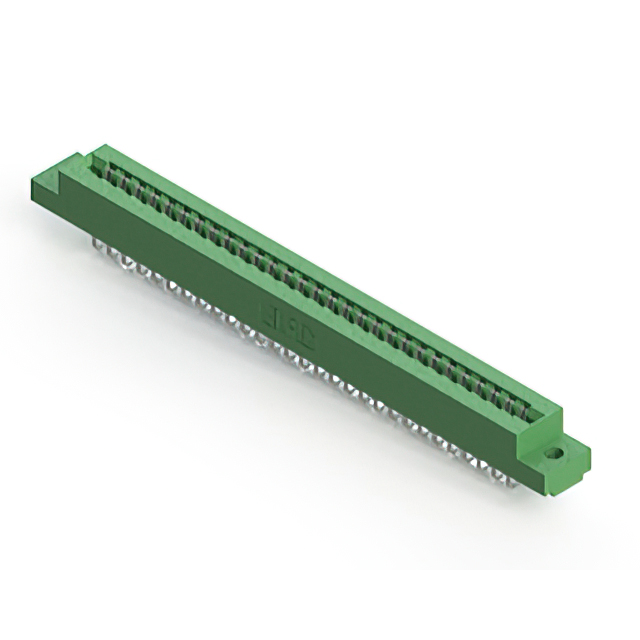

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

307-058-459-202

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-058-459-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

307-058 Series

...

Part	Material - Insulation	Termination Rows	Color	Termination	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Contact Material	Mounting Type	Contact Finish	Contact Type	Features	Number of Positions	Read Out	Card Type	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 307-058-455-201	Polyester Thermoplastic	2	Green	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Tin	Semi Bellows	Card Extender	58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29
EDAC Inc. 307-058-500-204	Polyester Thermoplastic	2	Green	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Through Hole	Gold	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 307-058-460-212	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Tin	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 307-058-458-278	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Through Hole Right Angle	Tin	Semi Bellows	Card Guides	58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 307-058-459-202	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Through Hole Right Angle	Tin	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 307-058-522-212	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Through Hole	Gold	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 307-058-456-258	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Tin	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 307-058-555-204	Polyester Thermoplastic	2	Green	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Gold	Semi Bellows	Card Extender	58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	10 Áin	0.25 Ám
EDAC Inc. 307-058-456-204	Polyester Thermoplastic	2	Green	Solder	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Tin	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 307-058-455-268	Polyester Thermoplastic	2	Green	Solder Eyelet(s)	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Copper Alloy	Board Edge Straddle Mount	Tin	Semi Bellows		58	Dual	Non Specified - Dual Edge	Female	-40 °C	105 ░C	29		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.92
Newark	Each	1	$ 16.61
		100	$ 12.89
		250	$ 12.04
		500	$ 10.41
		1000	$ 8.80

Description

General part information

307-058 Series

58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
