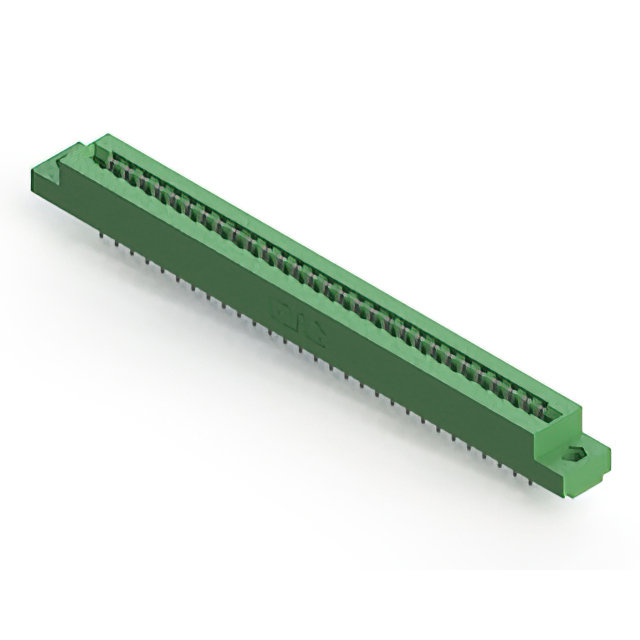

307-058-456-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 58 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
307-058-456-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 58 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, GREEN INSULATOR,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-058-456-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-058 Series
...
| Part | Material - Insulation | Termination Rows | Color | Termination | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Contact Material | Mounting Type | Contact Finish | Contact Type | Features | Number of Positions | Read Out | Card Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Tin | Semi Bellows | Card Extender | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | |||||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Through Hole | Gold | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Tin | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Through Hole Right Angle | Tin | Semi Bellows | Card Guides | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Through Hole Right Angle | Tin | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Through Hole | Gold | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Tin | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Gold | Semi Bellows | Card Extender | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám |
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Tin | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Polyester Thermoplastic | 2 | Green | Solder Eyelet(s) | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Copper Alloy | Board Edge Straddle Mount | Tin | Semi Bellows | 58 | Dual | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 29 | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
307-058 Series
58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
