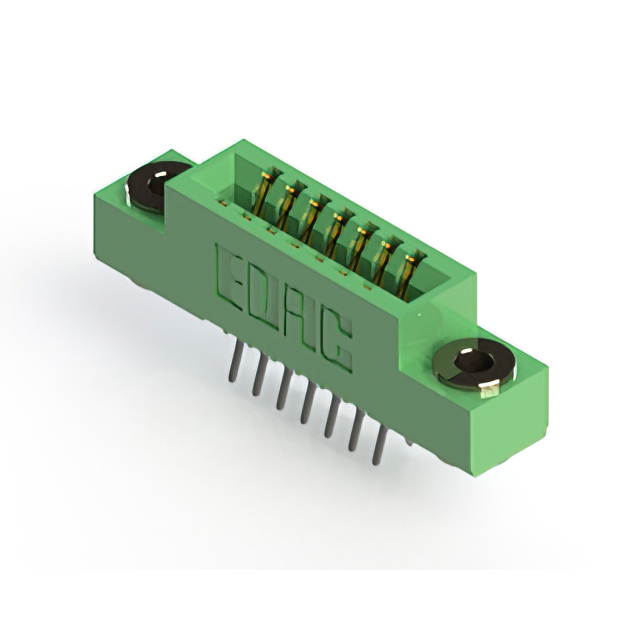

341-014-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.100

341-014-556-203

Active

EDAC Inc.

CONN EDGE DUAL FMALE 14POS 0.100

Description Specifications Series Pricing CAD Documents

Description

General part information

341-014 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	341-014-556-203

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Extender
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature Diameter	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Straddle Mount, Board Edge
Number of Positions	14, 7
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2 rows

341-014 Series

Part	Color	Gender	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Number of Rows	Flange Feature	Mounting Type	Contact Material	Pitch	Card Thickness (Min)	Card Thickness (Max)	Contact Finish	Contact Finish Thickness	Card Type	Termination	Read Out	Contact Type	Material - Insulation	Termination Rows	Features	Flange Feature Diameter
EDAC Inc. 341-014-520-107	Green	Female	14	-40 °C	105 °C	1	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder	Single	Semi Bellows	Polyester Thermoplastic	1 rows
EDAC Inc. 341-014-524-208	Green	Female	7 14	-40 °C	105 °C	2	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Dual Edge Non Specified	Solder	Dual	Semi Bellows	Polyester Thermoplastic	2 rows
EDAC Inc. 341-014-556-207	Green	Female	7 14	-40 °C	105 °C	2	Flush Mount M3 Threaded Insert Top Opening	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Dual Edge Non Specified	Solder	Dual	Semi Bellows	Polyester Thermoplastic	2 rows	Card Extender
EDAC Inc. 341-014-520-104	Green	Female	14	-40 °C	105 °C	1	Flush Mount Top Opening Unthreaded	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder	Single	Semi Bellows	Polyester Thermoplastic	1 rows		0.156 in
EDAC Inc. 341-014-524-104	Green	Female	14	-40 °C	105 °C	1	Flush Mount Top Opening Unthreaded	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder	Single	Semi Bellows	Polyester Thermoplastic	1 rows		0.156 in
EDAC Inc. 341-014-520-101	Green	Female	14	-40 °C	105 °C	1		Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder	Single	Semi Bellows	Polyester Thermoplastic	1 rows
EDAC Inc. 341-014-500-101	Green	Female	14	-40 °C	105 °C	1		Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder Eyelet(s)	Single	Semi Bellows	DAP Diallyl Phthalate	1 rows
EDAC Inc. 341-014-521-104	Green	Female	14	-40 °C	105 °C	1	Flush Mount Top Opening Unthreaded	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Non Specified Single Edge	Solder	Single	Semi Bellows	Polyester Thermoplastic	1 rows		0.156 in
EDAC Inc. 341-014-520-204	Green	Female	7 14	-40 °C	105 °C	2	Flush Mount Top Opening Unthreaded	Through Hole	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Dual Edge Non Specified	Solder	Dual	Semi Bellows	Polyester Thermoplastic	2 rows		0.156 in
EDAC Inc. 341-014-556-203	Green	Female	7 14	-40 °C	105 °C	2	Floating Bobbin Flush Mount	Board Edge Straddle Mount	Copper Alloy	0.1 in	0.054 in	0.07 in	Gold	10 Ąin	Dual Edge Non Specified	Solder	Dual	Semi Bellows	Polyester Thermoplastic	2 rows	Card Extender	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

341-014-556-203 | Datasheet
