341-014-524-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 14POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-014-524-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 14POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-014-524-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
341-014 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Contact Material | Contact Finish | Read Out | Termination | Number of Rows | Card Type | Number of Positions | Number of Positions/Bay/Row [custom] | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Color | Pitch [x] | Pitch [x] | Contact Type | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | Dual | Solder | 2 | Non Specified - Dual Edge | 14 | 7 | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | 3.96 mm | 0.156 in | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | 3.96 mm | 0.156 in | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Gold | Single | Solder Eyelet(s) | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Copper Alloy | Gold | Single | Solder | 1 | Non Specified - Single Edge | 14 | 14 | 1 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Through Hole | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | 3.96 mm | 0.156 in | |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Gold | Dual | Solder | 2 | Non Specified - Dual Edge | 14 | 7 | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | Card Extender | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | Copper Alloy | Gold | Dual | Solder | 2 | Non Specified - Dual Edge | 14 | 7 | 2 | -40 °C | 105 ░C | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Green | 2.54 mm | 0.1 in | Semi Bellows | Female | 2.95 mm | 0.116 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 6.78 | |
Description
General part information
341-014 Series

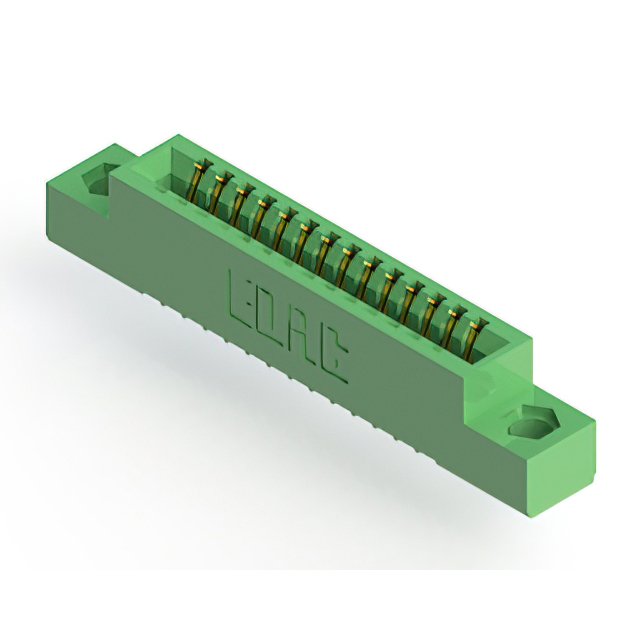

14 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
