CHG-2014-001010-KEP

Active

3M (TC)

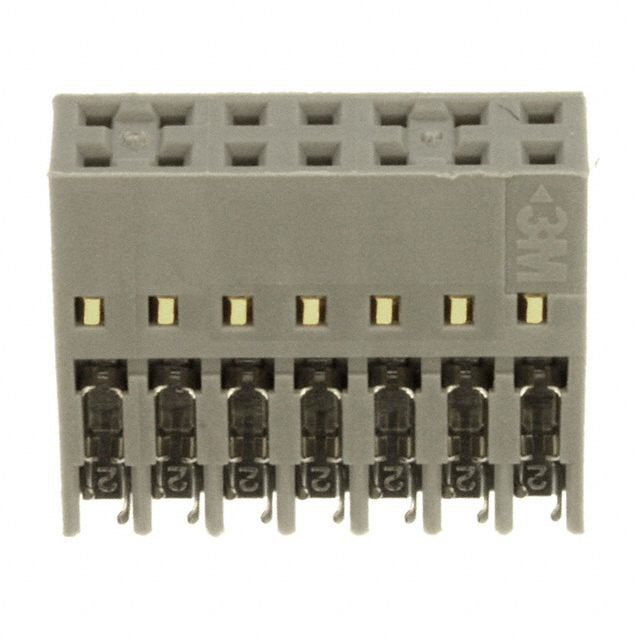

HEADER CONNECTOR,CABLE MOUNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +1

CHG-2014-001010-KEP

Active

3M (TC)

HEADER CONNECTOR,CABLE MOUNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHG-2014-001010-KEP

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	22 AWG
Wire Type	Discrete or Ribbon Cable

CHG Series

Part	Contact Type	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Color	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Wire Type	Cable Termination	Features	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
3M (TC) CHG-2016-J01010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2	16	0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC
3M (TC) CHG-2006-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	6
3M (TC) CHG-2010-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	10
3M (TC) CHG-2006-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	6	24 AWG	22 AWG
3M (TC) CHG-1025-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	1		0.76 Ám	30 Áin			Discrete or Ribbon Cable	IDC	Closed End		24 AWG	22 AWG
3M (TC) CHG-2034-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	34	24 AWG	22 AWG
3M (TC) CHG-2020-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	20
3M (TC) CHG-2014-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	14	24 AWG	22 AWG
3M (TC) CHG-2064-J01010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC		64	24 AWG	22 AWG
3M (TC) CHG-2008-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	8	24 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.98
		10	$ 6.78
		25	$ 6.35
		50	$ 6.05
		100	$ 5.76
		300	$ 5.33
		500	$ 5.14
		1000	$ 4.90
Newark	Each	250	$ 7.29
		500	$ 6.78
		1000	$ 6.37

Description

General part information

CHG Series

14 Position Rectangular Receptacle Connector IDC Gold 22-24 AWG

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

CHG Series Specification

Datasheet
