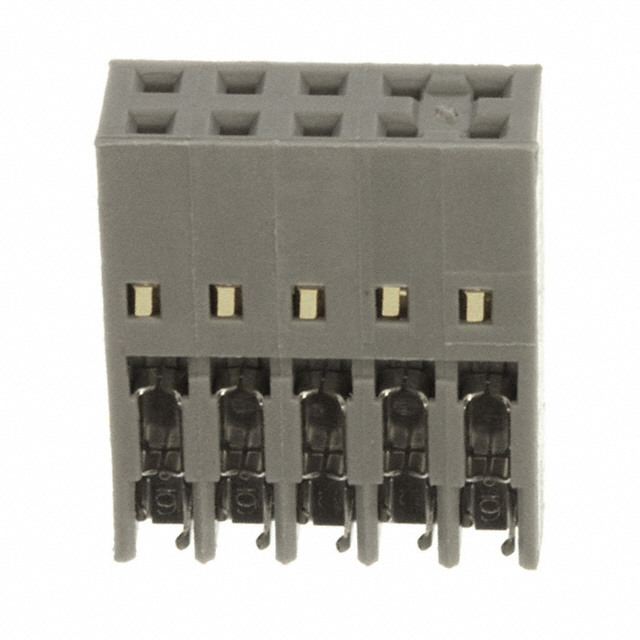

CHG-2010-001010-KCP

Active

3M (TC)

CONN RCPT 10P IDC 26-28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCHG Series Specification Datasheet +1

CHG-2010-001010-KCP

Active

3M (TC)

CONN RCPT 10P IDC 26-28AWG GOLD

Deep-Dive with AI

DocumentsCHG Series Specification Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CHG-2010-001010-KCP

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Closed End
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Discrete or Ribbon Cable

CHG Series

Part	Contact Type	Contact Finish	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Color	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Row Spacing [x]	Row Spacing	Wire Type	Cable Termination	Features	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
3M (TC) CHG-2016-J01010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2	16	0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC
3M (TC) CHG-2006-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	6
3M (TC) CHG-2010-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	10
3M (TC) CHG-2006-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	6	24 AWG	22 AWG
3M (TC) CHG-1025-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	1		0.76 Ám	30 Áin			Discrete or Ribbon Cable	IDC	Closed End		24 AWG	22 AWG
3M (TC) CHG-2034-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	34	24 AWG	22 AWG
3M (TC) CHG-2020-001010-KCP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	20
3M (TC) CHG-2014-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	14	24 AWG	22 AWG
3M (TC) CHG-2064-J01010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC		64	24 AWG	22 AWG
3M (TC) CHG-2008-001010-KEP	Female Socket	Gold	2.54 mm	0.1 in	Receptacle	Free Hanging (In-Line)	Gray	2		0.76 Ám	30 Áin	0.1 in	2.54 mm	Discrete or Ribbon Cable	IDC	Closed End	8	24 AWG	22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.38
		10	$ 7.58
		25	$ 7.16
		50	$ 6.98
		100	$ 6.63
		300	$ 5.93
		500	$ 5.59
		1000	$ 4.89

Description

General part information

CHG Series

10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG

Documents

Technical documentation and resources

CHG Series Specification

Datasheet

Interconnect Catalog

Datasheet
