9001978-04

Active

Kyocera AVX

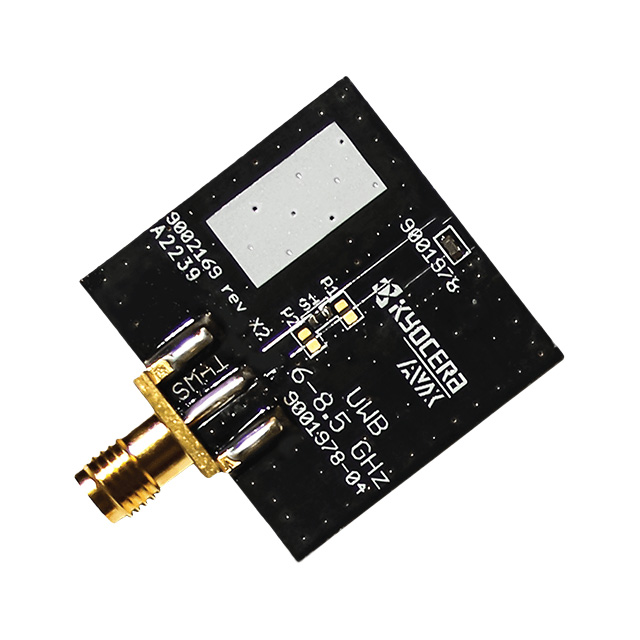

EVAL BOARD FOR 9001978

Search across all available documentation for this part.

Active

Kyocera AVX

EVAL BOARD FOR 9001978

Technical Specifications

Parameters and characteristics for this part

Specification	9001978-04

For Use With/Related Products	9001978
Frequency [Max]	8.5 GHz
Frequency [Min]	6 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	For Use With/Related Products	Supplied Contents	Type	Frequency [Max]	Frequency [Min]	Applications	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Mounting Type	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Antenna Type	VSWR	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)
Kyocera AVX 9001978-04	9001978	Board(s)	Antenna	8.5 GHz	6 GHz
Kyocera AVX 9001978-01	9001978	Board(s)	Antenna	2.485 GHz	2.4 GHz
Kyocera AVX 9001978						Bluetooth M2M UWB Wi-Fi WLAN Zigbee™	3 dBi	4 GHz	2 GHz	3 GHz	Bluetooth WiFi	Surface Mount	3	0.016 in	0.4 mm	500 mW	Ceramic Patch	2.1 7	2.4 GHz 5.15 GHz 6 GHz	2.48 GHz 5.85 GHz 8.5 GHz	2.44 GHz 5.5 GHz 7.25 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.31

General part information

9001978 - Antenna 6GHz ~ 8.5GHz Evaluation Board

Technical documentation and resources
