9001978

Active

Kyocera AVX

ULTRA-SMALL UWB OR BLUETOOTH OR

Search across all available documentation for this part.

Active

Kyocera AVX

ULTRA-SMALL UWB OR BLUETOOTH OR

Technical Specifications

Parameters and characteristics for this part

Specification	9001978

Antenna Type	Ceramic Patch
Applications	Bluetooth, WLAN, Wi-Fi, UWB, M2M, Zigbee™
Frequency (Center/Band)	2.44 GHz, 5.5 GHz, 7.25 GHz
Frequency Group	4 GHz
Frequency Group [Max]	3 GHz
Frequency Group [Min]	2 GHz
Frequency Range [Max]	2.48 GHz, 8.5 GHz, 5.85 GHz
Frequency Range [Min]	6 GHz, 2.4 GHz, 5.15 GHz
Gain	3 dBi
Height (Max) [Max] [z]	0.016 in
Height (Max) [Max] [z]	0.4 mm
Mounting Type	Surface Mount
Number of Bands	3
Power - Max [Max]	500 mW
RF Family/Standard	WiFi, Bluetooth
VSWR	7, 2.1

Part	For Use With/Related Products	Supplied Contents	Type	Frequency [Max]	Frequency [Min]	Applications	Gain	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	RF Family/Standard	Mounting Type	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Power - Max [Max]	Antenna Type	VSWR	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)
Kyocera AVX 9001978-04	9001978	Board(s)	Antenna	8.5 GHz	6 GHz
Kyocera AVX 9001978-01	9001978	Board(s)	Antenna	2.485 GHz	2.4 GHz
Kyocera AVX 9001978						Bluetooth M2M UWB Wi-Fi WLAN Zigbee™	3 dBi	4 GHz	2 GHz	3 GHz	Bluetooth WiFi	Surface Mount	3	0.016 in	0.4 mm	500 mW	Ceramic Patch	2.1 7	2.4 GHz 5.15 GHz 6 GHz	2.48 GHz 5.85 GHz 8.5 GHz	2.44 GHz 5.5 GHz 7.25 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

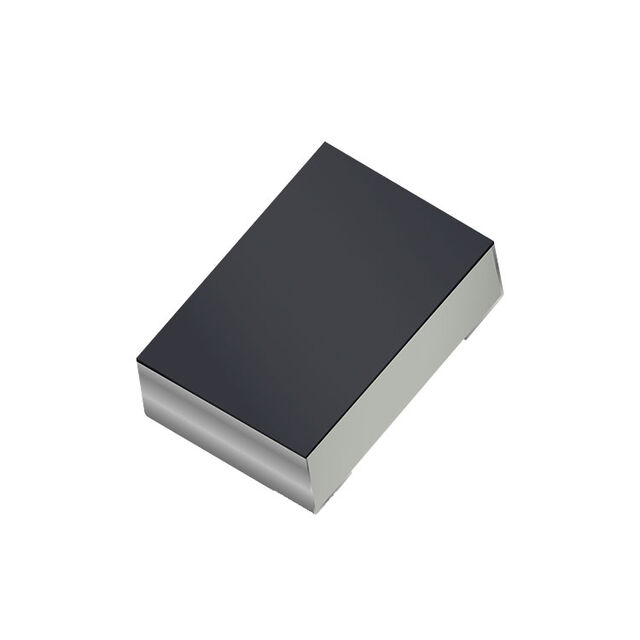

RF ANTENNA Bluetooth, M2M, UWB, Wi-Fi, WLAN, Zigbee™ Ceramic Patch Surface Mount
