LM4667MMBD/NOPB
ActiveTexas Instruments
BOARD EVAL FOR LM4667
Deep-Dive with AI
Search across all available documentation for this part.
LM4667MMBD/NOPB
ActiveTexas Instruments
BOARD EVAL FOR LM4667
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LM4667MMBD/NOPB | LM4667 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Features | - | Differential Inputs, Short-Circuit Protection, Depop, Shutdown |
| Max Output Power x Channels @ Load [custom] | 1 | 1 |
| Max Output Power x Channels @ Load [custom] | 1.3 W | 1.3 W |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | 1-Channel (Mono) | 1-Channel (Mono) |
| Package / Case | - | 10-TFSOP, 10-MSOP, 9-WFBGA, DSBGA |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-VSSOP, 9-DSBGA |
| Type | - | Class D |
| Utilized IC / Part | LM4667 | LM4667 |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
LM4667 Series
1.3-W, MONO, ANALOG INPUT CLASS-D AUDIO AMP WITH SELECTABLE GAIN
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Type | Features | Package / Case | Max Output Power x Channels @ Load [custom] | Max Output Power x Channels @ Load [custom] | Output Type | Utilized IC / Part | Board Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments LM4667MM/NOPB | 2.7 V | 5.5 V | Surface Mount | 85 °C | -40 °C | 10-VSSOP | Class D | Depop, Differential Inputs, Short-Circuit Protection, Shutdown | 10-MSOP, 10-TFSOP | 1 | 1.3 W | 1-Channel (Mono) | |||
Texas Instruments LM4667MMBD/NOPB | 2.7 V | 5.5 V | 1 | 1.3 W | 1-Channel (Mono) | LM4667 | Fully Populated | Board(s) | |||||||
Texas Instruments LM4667ITL/NOPB | 2.7 V | 5.5 V | Surface Mount | 85 °C | -40 °C | 9-DSBGA | Class D | Depop, Differential Inputs, Short-Circuit Protection, Shutdown | 9-WFBGA, DSBGA | 1 | 1.3 W | 1-Channel (Mono) | |||
Texas Instruments LM4667ITLX/NOPB | 2.7 V | 5.5 V | Surface Mount | 85 °C | -40 °C | 9-DSBGA | Class D | Depop, Differential Inputs, Short-Circuit Protection, Shutdown | 9-WFBGA, DSBGA | 1 | 1.3 W | 1-Channel (Mono) | |||
Texas Instruments LM4667MMBD | 2.7 V | 5.5 V | 1 | 1.3 W | 1-Channel (Mono) | LM4667 | Fully Populated | Board(s) | |||||||
Texas Instruments LM4667MM | 2.7 V | 5.5 V | Surface Mount | 85 °C | -40 °C | 10-VSSOP | Class D | Depop, Differential Inputs, Short-Circuit Protection, Shutdown | 10-MSOP, 10-TFSOP | 1 | 1.3 W | 1-Channel (Mono) | |||
Texas Instruments LM4667MMX/NOPB | 2.7 V | 5.5 V | Surface Mount | 85 °C | -40 °C | 10-VSSOP | Class D | Depop, Differential Inputs, Short-Circuit Protection, Shutdown | 10-MSOP, 10-TFSOP | 1 | 1.3 W | 1-Channel (Mono) |
Description
General part information
LM4667 Series

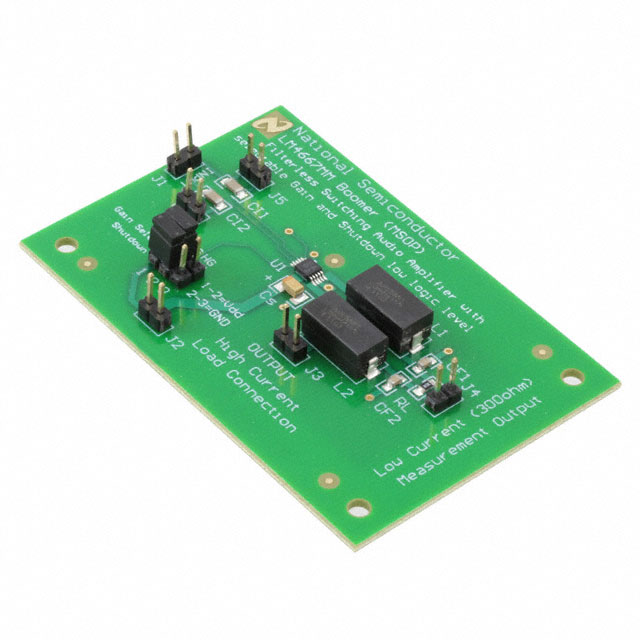

LM4667 Boomer® 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
Documents
Technical documentation and resources
No documents available
