200MSP2T3B2M6QE

Active

E-Switch

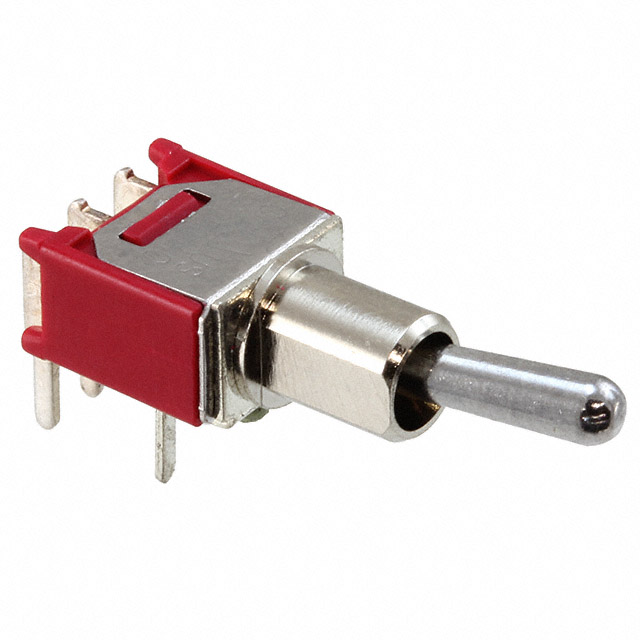

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200MSP2T3B2M6QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.57
		10	$ 4.08
		25	$ 3.86
		50	$ 3.72
		100	$ 3.55
		270	$ 3.39
		540	$ 3.09
		1080	$ 2.96

Description

General part information

200MSP2 Series

Toggle Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200MSP2T3B2M6QE	200MSP2 Series

Actuator Length	-	5.33 - 9.4 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	10-48, Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Right Angle, Panel Mount, Through Hole, Vertical
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions	-	0.25 - 4.95 mm
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin, Solder Lug
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

200MSP2 Series

SWITCH TOGGLE SPDT 3A 120V

Part	Circuit	Bushing Thread	Voltage Rating - AC	Switch Function	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Electrical Life	Features	Current Rating (Amps)	Illumination	Actuator Length [x]	Actuator Material	Mounting Type
E-Switch 200MSP2T1B1M2QEH	SPDT	10-48	120 V	On-Mom	PC Pin	Standard Round	4.95 mm	-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	9.4 mm	Brass, Chrome Plated
E-Switch 200MSP2T3B2M6QE	SPDT	Unthreaded	120 V	On-Mom	PC Pin	Standard Round		-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated		Brass, Chrome Plated	Through Hole, Right Angle
E-Switch 200MSP2T1B1M6QE	SPDT	10-48	120 V	On-Mom	PC Pin	Standard Round	4.95 mm	-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	9.4 mm	Brass, Chrome Plated	Panel Mount, Right Angle
E-Switch 200MSP2T2B1M1QE	SPDT	10-48	120 V	On-Mom	Solder Lug	Standard Round	4.95 mm	-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	5.33 mm	Brass, Chrome Plated
E-Switch 200MSP2T2B2M7RE	SPDT	Unthreaded	20 V	On-Mom	PC Pin	Standard Round		-30 ░C	85 °C	20 V	30000 Cycles	Epoxy Sealed Terminals	0.4 VA	Non-Illuminated	5.33 mm	Brass, Chrome Plated	Right Angle, Through Hole, Vertical
E-Switch 200MSP2T2B1M2RE	SPDT	10-48	20 V	On-Mom	PC Pin	Standard Round	4.95 mm	-30 ░C	85 °C	20 V	30000 Cycles	Epoxy Sealed Terminals	0.4 VA	Non-Illuminated	5.33 mm	Brass, Chrome Plated
E-Switch 200MSP2T1B1M2REH	SPDT	10-48	20 V	On-Mom	PC Pin	Standard Round	4.95 mm	-30 ░C	85 °C	20 V	30000 Cycles	Epoxy Sealed Terminals	0.4 VA	Non-Illuminated	9.4 mm	Brass, Chrome Plated
E-Switch 200MSP2T2B4M6QE	SPDT	Unthreaded	120 V	On-Mom	PC Pin	Standard Round		-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	5.33 mm	Brass, Chrome Plated	Through Hole, Right Angle
E-Switch 200MSP2T2B2M7QE	SPDT	Unthreaded	120 V	On-Mom	PC Pin	Standard Round		-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	5.33 mm	Brass, Chrome Plated	Right Angle, Through Hole, Vertical
E-Switch 200MSP2T1B5M2QE	SPDT	1/4-40	120 V	On-Mom	PC Pin	Standard Round	0.25 in	-30 ░C	85 °C	28 V	30000 Cycles	Epoxy Sealed Terminals	3 A	Non-Illuminated	9.4 mm	Brass, Chrome Plated
