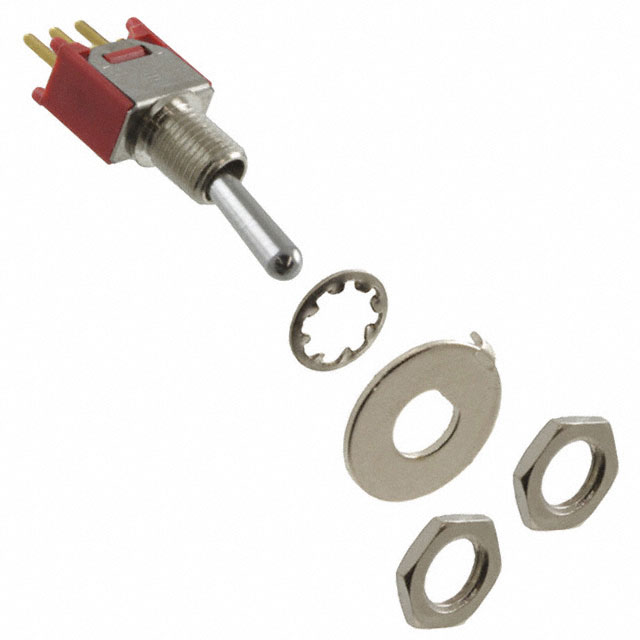

200MSP2T1B1M2REH
ActiveE-Switch
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
200MSP2T1B1M2REH
ActiveE-Switch
SWITCH TOGGLE SPDT 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 200MSP2T1B1M2REH | 200MSP2 Series |
|---|---|---|
| Actuator Length [x] | 9.4 mm | 5.33 - 9.4 mm |
| Actuator Material | Brass, Chrome Plated | Brass, Chrome Plated |
| Actuator Type | Standard Round | Standard Round |
| Bushing Thread | 10-48 | 10-48, Unthreaded, 1/4-40 |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 0.4 VA | 0.4 - 3 A |
| Electrical Life | 30000 Cycles | 30000 Cycles |
| Features | Epoxy Sealed Terminals | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated | Non-Illuminated |
| Mounting Type | - | Through Hole, Right Angle, Right Angle, Panel Mount, Through Hole, Vertical |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -30 ░C | -30 ░C |
| Panel Cutout Dimensions [diameter] | 4.95 mm | 0.25 - 4.95 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | PC Pin | PC Pin, Solder Lug |
| Voltage Rating - AC | 20 V | 20 - 120 V |
| Voltage Rating - DC | 20 V | 20 - 28 V |
200MSP2 Series
SWITCH TOGGLE SPDT 3A 120V
| Part | Circuit | Bushing Thread | Voltage Rating - AC | Switch Function | Termination Style | Actuator Type | Panel Cutout Dimensions [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Electrical Life | Features | Current Rating (Amps) | Illumination | Actuator Length [x] | Actuator Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch 200MSP2T1B1M2QEH | SPDT | 10-48 | 120 V | On-Mom | PC Pin | Standard Round | 4.95 mm | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 9.4 mm | Brass, Chrome Plated | |
E-Switch 200MSP2T3B2M6QE | SPDT | Unthreaded | 120 V | On-Mom | PC Pin | Standard Round | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | Brass, Chrome Plated | Through Hole, Right Angle | ||
E-Switch 200MSP2T1B1M6QE | SPDT | 10-48 | 120 V | On-Mom | PC Pin | Standard Round | 4.95 mm | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 9.4 mm | Brass, Chrome Plated | Panel Mount, Right Angle |
E-Switch 200MSP2T2B1M1QE | SPDT | 10-48 | 120 V | On-Mom | Solder Lug | Standard Round | 4.95 mm | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 5.33 mm | Brass, Chrome Plated | |
E-Switch 200MSP2T2B2M7RE | SPDT | Unthreaded | 20 V | On-Mom | PC Pin | Standard Round | -30 ░C | 85 °C | 20 V | 30000 Cycles | Epoxy Sealed Terminals | 0.4 VA | Non-Illuminated | 5.33 mm | Brass, Chrome Plated | Right Angle, Through Hole, Vertical | |
E-Switch 200MSP2T2B1M2RE | SPDT | 10-48 | 20 V | On-Mom | PC Pin | Standard Round | 4.95 mm | -30 ░C | 85 °C | 20 V | 30000 Cycles | Epoxy Sealed Terminals | 0.4 VA | Non-Illuminated | 5.33 mm | Brass, Chrome Plated | |
E-Switch 200MSP2T1B1M2REH | SPDT | 10-48 | 20 V | On-Mom | PC Pin | Standard Round | 4.95 mm | -30 ░C | 85 °C | 20 V | 30000 Cycles | Epoxy Sealed Terminals | 0.4 VA | Non-Illuminated | 9.4 mm | Brass, Chrome Plated | |
E-Switch 200MSP2T2B4M6QE | SPDT | Unthreaded | 120 V | On-Mom | PC Pin | Standard Round | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 5.33 mm | Brass, Chrome Plated | Through Hole, Right Angle | |
E-Switch 200MSP2T2B2M7QE | SPDT | Unthreaded | 120 V | On-Mom | PC Pin | Standard Round | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 5.33 mm | Brass, Chrome Plated | Right Angle, Through Hole, Vertical | |
E-Switch 200MSP2T1B5M2QE | SPDT | 1/4-40 | 120 V | On-Mom | PC Pin | Standard Round | 0.25 in | -30 ░C | 85 °C | 28 V | 30000 Cycles | Epoxy Sealed Terminals | 3 A | Non-Illuminated | 9.4 mm | Brass, Chrome Plated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 675 | $ 2.57 | |
Description
General part information
200MSP2 Series
Toggle Switch SPDT Panel Mount
