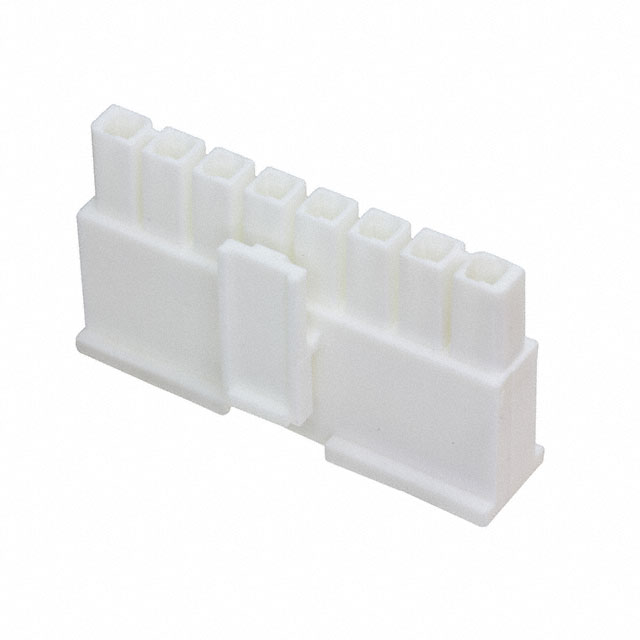

IPBD-08-S-K - IPBD-08-S-K

IPBD-08-S-K

Active
Samtec Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCC69L Series Other Related Documents 03IPBD Datasheet+1
IPBD-08-S-K - IPBD-08-S-K

IPBD-08-S-K

Active
Samtec Inc.

CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsCC69L Series Other Related Documents 03IPBD Datasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationIPBD-08-S-K
Connector TypeReceptacle
Contact TerminationCrimp
Contact TypeFemale Socket
Fastening TypeLatch Lock
FeaturesPolarizing Key
Insulation MaterialPolyamide (PA), Nylon
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions8
Number of Rows1
Pitch [x]4.2 mm
Pitch [x]0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 3.14
10$ 2.40
25$ 2.16
50$ 2.00
100$ 1.85
250$ 1.68
500$ 1.56
1000$ 1.46
2500$ 1.33
NewarkEach 1$ 2.59
10$ 1.99
50$ 1.77
100$ 1.55
250$ 1.50
500$ 1.36
1000$ 1.18

Description

General part information

IPBD-08 Series

8 Rectangular Connectors - Housings Receptacle 0.165" (4.20mm)
