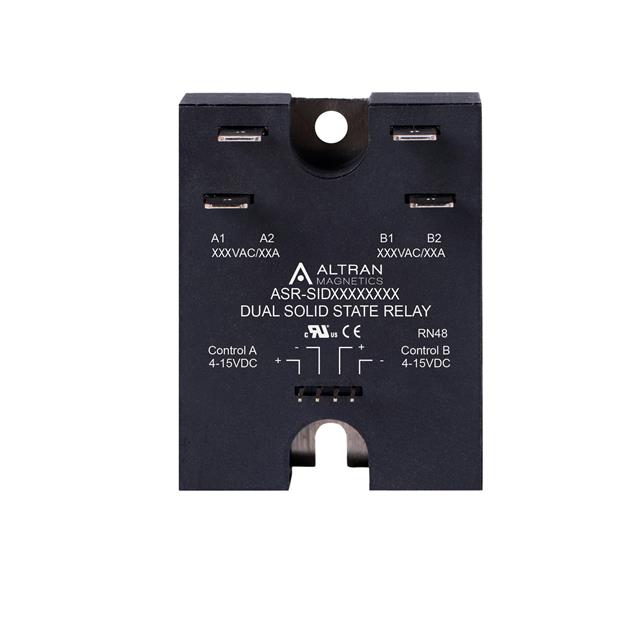

ASR-SID480D40ZL

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 40A 24-530V

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

SSR RELAY SPST-NO 40A 24-530V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ASR-SID480D40ZL	ASR-SID Series

Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Circuit	SPST-NO (1 Form A) x 2	SPST-NO (1 Form A) x 2
Load Current	40 A	25 - 50 A
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Output Type	AC, Zero Cross	AC, Zero Cross
Package / Case	Module	Module
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm), Screw Terminal
Voltage - Input [Max]	15 V	15 - 32 V
Voltage - Input [Min]	4 V	4 - 15 V
Voltage - Load [Max]	530 V	280 - 530 V
Voltage - Load [Min]	24 V	24 V

SSR RELAY SPST-NO 40A 24-530V

Part	Output Type	Circuit	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Load Current	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Termination Style	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
Altran Magnetics, LLC ASR-SID480D40ZL	AC, Zero Cross	SPST-NO (1 Form A) x 2	15 V	4 V	Module	40 A	Chassis Mount	24 V	530 V	Quick Connect - 0.250" (6.3mm)	CE, cURus, TUV	-30 ░C	80 C
Altran Magnetics, LLC ASR-SID480D25ZH	AC, Zero Cross	SPST-NO (1 Form A) x 2	32 V	15 V	Module	25 A	Chassis Mount	24 V	530 V	Quick Connect - 0.250" (6.3mm)	CE, cURus, TUV	-30 ░C	80 C
Altran Magnetics, LLC ASR-SID480D25ZL-S	AC, Zero Cross	SPST-NO (1 Form A) x 2	15 V	4 V	Module	25 A	Chassis Mount	24 V	530 V	Screw Terminal	CE, cURus, TUV	-30 ░C	80 C
Altran Magnetics, LLC ASR-SID240D50ZL-SP	AC, Zero Cross	SPST-NO (1 Form A) x 2	15 V	4 V	Module	50 A	Chassis Mount	24 V	280 V	Screw Terminal	CE, cURus, TUV	-30 ░C	80 C
Altran Magnetics, LLC ASR-SID480D25ZL-C	AC, Zero Cross	SPST-NO (1 Form A) x 2	15 V	4 V	Module	25 A	Chassis Mount	24 V	530 V	Quick Connect - 0.250" (6.3mm)	CE, cURus, TUV	-30 ░C	80 C
Altran Magnetics, LLC ASR-SID240D25ZL	AC, Zero Cross	SPST-NO (1 Form A) x 2	15 V	4 V	Module	25 A	Chassis Mount	24 V	280 V	Quick Connect - 0.250" (6.3mm)	CE, cURus, TUV	-30 ░C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) x 2 Module
