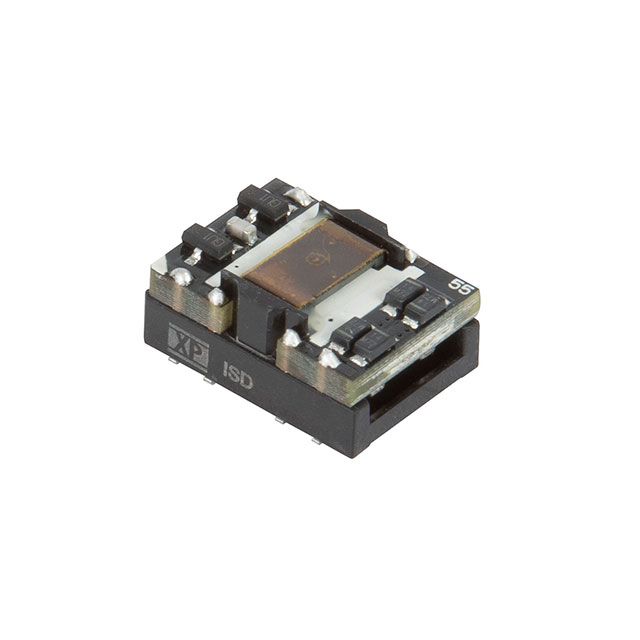

ISD0205D05
ObsoleteXP POWER
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISD0205D05
ObsoleteXP POWER
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISD0205D05 |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 81 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-SMD Module, 6 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 15.2 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 11.2 mm |
| Size / Dimension [y] | 0.44 in |
| Size / Dimension [z] | 0.27 " |
| Size / Dimension [z] | 6.9 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ISD0205 Series
Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 5.5V Input
