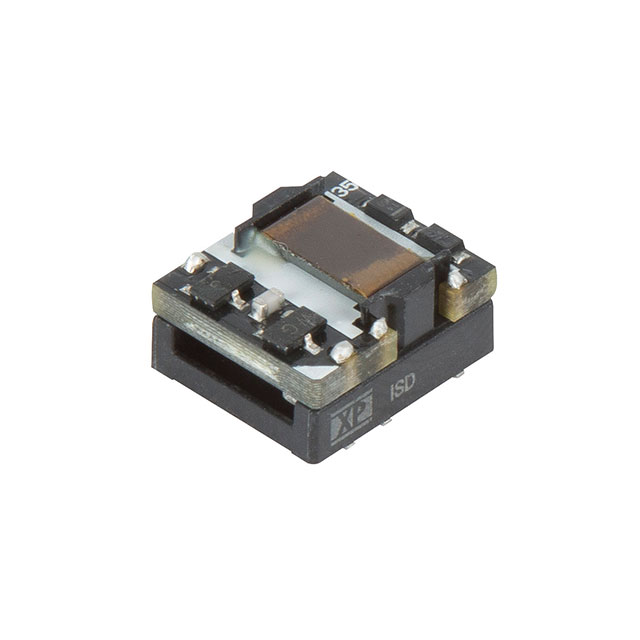

ISD0205S05

Active

XP POWER

DC DC CONVERTER 5V 2W

Search across all available documentation for this part.

Active

XP POWER

DC DC CONVERTER 5V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Power (Watts)	Voltage - Output 1	Package / Case	Efficiency	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Features	Number of Outputs	Type	Voltage - Input (Max) [Max]	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 2
XP POWER ISD0205S05	Surface Mount	2 W	5 V	8-SMD Module 5 Leads	79 %	400 mA	62368-1	-40 °C	105 C	4.5 V	4.2 kV	SCP	1	Isolated Module	5.5 V	ITE (Commercial)
XP POWER ISD0205D05	Surface Mount	2 W	5 V	10-SMD Module 6 Leads	81 %		62368-1	-40 °C	105 C	4.5 V	4.2 kV	SCP	2	Isolated Module	5.5 V	ITE (Commercial)	0.27 "	6.9 mm	11.2 mm	15.2 mm	0.6 in	0.44 in	-5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	40	$ 6.98

General part information

Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
