SOLC-125-02-S-Q-P-TR

Active

Samtec Inc.

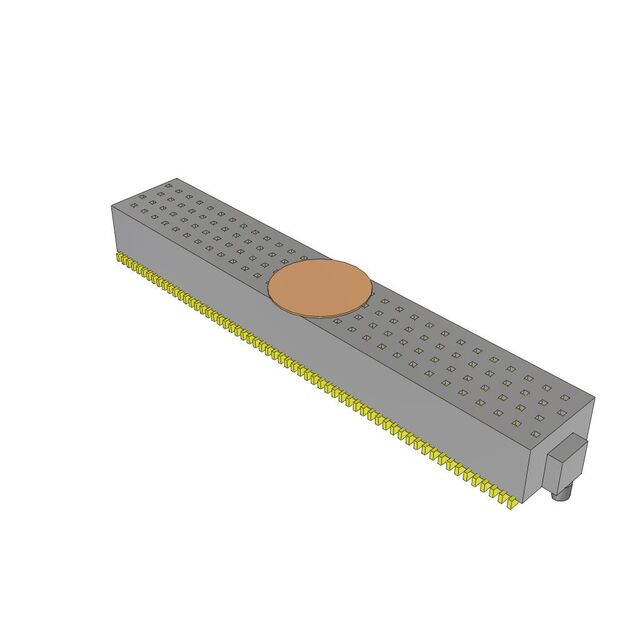

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 4 ROWS, 100 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SOLC Datasheet +2

SOLC-125-02-S-Q-P-TR

Active

Samtec Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 4 ROWS, 100 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheet SOLC Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SOLC-125-02-S-Q-P-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2.4 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height [z]	0.16 in
Insulation Height [z]	4.06 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	100
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder

SOLC-125 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Material	Termination	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Contact Finish - Mating	Insulation Material	Insulation Height [z]	Insulation Height [z]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Connector Type	Material Flammability Rating	Number of Positions Loaded	Features
Samtec Inc. SOLC-125-02-S-Q-LC-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	30 Áin	0.76 Ám	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All
Samtec Inc. SOLC-125-02-F-Q-LC-K	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	3 µin	0.076 µm	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Lock Pick and Place
Samtec Inc. SOLC-125-02-S-Q-LC-P	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	30 Áin	0.76 Ám	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Lock Pick and Place
Samtec Inc. SOLC-125-02-S-Q-A-K-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	30 Áin	0.76 Ám	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Guide Pick and Place
Samtec Inc. SOLC-125-02-F-Q-P	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	3 µin	0.076 µm	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Pick and Place
Samtec Inc. SOLC-125-02-S-Q-P-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	30 Áin	0.76 Ám	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Pick and Place
Samtec Inc. SOLC-125-02-L-Q-A-K-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	10 çin	0.25 çm	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Guide Pick and Place
Samtec Inc. SOLC-125-02-F-Q-P-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	3 µin	0.076 µm	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Pick and Place
Samtec Inc. SOLC-125-02-L-Q-A-K	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	10 çin	0.25 çm	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Guide Pick and Place
Samtec Inc. SOLC-125-02-S-Q-A-TR	0.05 in	1.27 mm	Push-Pull	3 µin	0.076 µm	2.4 A	Phosphor Bronze	Solder	0.05 in	1.27 mm	Surface Mount	Forked	30 Áin	0.76 Ám	Square	Black	Gold	Liquid Crystal Polymer (LCP)	0.16 in	4.06 mm	100	-55 °C	125 °C	Gold	Receptacle	UL94 V-0	All	Board Guide
