General part information

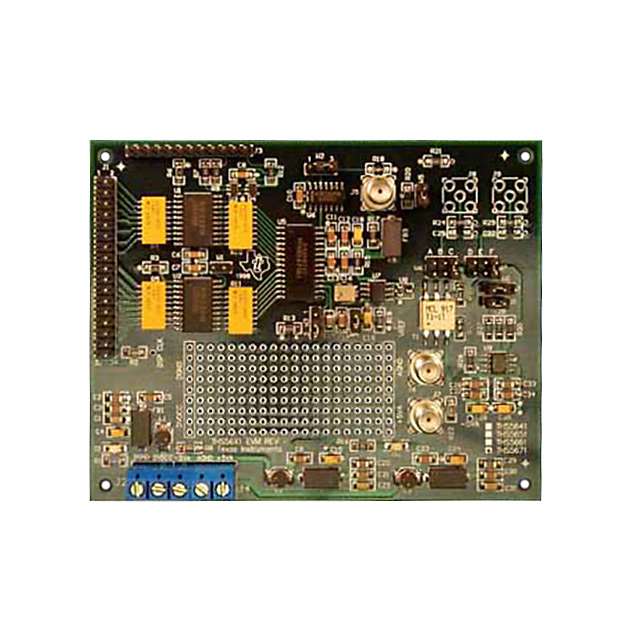

THS5671A 14 Bit 125M Samples Per Second Digital to Analog Converter (DAC) Evaluation Board
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | THS5671EVM | THS5671 Series |
|---|---|---|
| Architecture | - | Current Source |
| DAC Type | Current | Current |
| Data Interface | Parallel | Parallel |
| Differential Output | - | True |
| INL/DNL (LSB) | - | 2 - 2.5 LSB |
| Mounting Type | - | Surface Mount |
| Number of Bits | 14 | 14 |
| Number of DAC's | 1 | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | Current - Unbuffered |
| Package / Case | - | 28-TSSOP, 28-SOIC |
| Package / Case | - | 0.173 in |
| Package / Case | - | 4.4 - 7.5 mm |
| Package / Case | - | 0.295 in |
| Reference Type | - | External, Internal |
| Sampling Rate (Per Second) | 125 M | 125 M |
| Settling Time | 35 ns | 35 ns |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 28-TSSOP, 28-SOIC |
| Utilized IC / Part | THS5671A | THS5671A |
| Voltage - Supply, Analog | - | 5 V |
| Voltage - Supply, Digital | - | 3 V |
| Voltage - Supply, Digital | - | 5.5 V |
EVAL MOD FOR THS5671
| Part | Number of Bits | DAC Type | Data Interface | Supplied Contents | Sampling Rate (Per Second) | Settling Time | Number of DAC's | Utilized IC / Part | Differential Output | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Output Type | Supplier Device Package | Architecture | Reference Type | Voltage - Supply, Analog | Package / Case | Package / Case | Package / Case [y] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | INL/DNL (LSB) | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments THS5671EVM | 14 | Current | Parallel | Board(s) | 125 M | 35 ns | 1 | THS5671A | ||||||||||||||||
Texas Instruments THS5671AIPW | 14 | Parallel | 35 ns | 3 V | 5.5 V | Current - Unbuffered | 28-TSSOP | Current Source | External, Internal | 5 V | 28-TSSOP | 0.173 in | 4.4 mm | 85 °C | -40 °C | Surface Mount | 2 LSB, 2.5 LSB | |||||||
Texas Instruments THS5671AIDW | 14 | Parallel | 35 ns | 3 V | 5.5 V | Current - Unbuffered | 28-SOIC | Current Source | External, Internal | 5 V | 28-SOIC | 7.5 mm | 85 °C | -40 °C | Surface Mount | 2 LSB, 2.5 LSB | 0.295 in |
