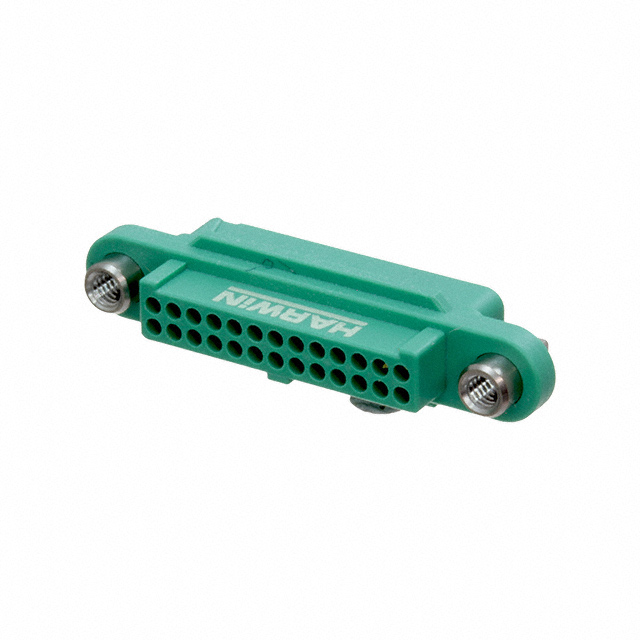

13+13 POS. FEMALE DIL CABLE HOUSING, SCREW-LOK REVERSE FIX
Deep-Dive with AI
Search across all available documentation for this part.
G125-2242696F2
ActiveHarwin Inc.
13+13 POS. FEMALE DIL CABLE HOUSING, SCREW-LOK REVERSE FIX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-2242696F2 |
|---|---|
| Color | Green |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Threaded Inserts, Polarizing Key, Mating Flange |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
| Row Spacing | 1.25 mm |
| Row Spacing | 0.049 in |
G125-224 Series
| Part | Number of Rows | Number of Positions | Note | Pitch [x] | Pitch [x] | Features | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Termination | Insulation Material | Connector Type | Row Spacing | Row Spacing | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2 | 26 | Contacts Not Included | 0.049 in | 1.25 mm | Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 6 | Contacts Not Included | 0.049 in | 1.25 mm | Jackscrews Mating Flange Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 50 | Contacts Not Included | 0.049 in | 1.25 mm | Jackscrews Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 26 | Contacts Not Included | 0.049 in | 1.25 mm | Mating Flange Polarizing Key Threaded Inserts | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | Free Hanging (In-Line) | |||
Harwin Inc. | 2 | 10 | Contacts Not Included | 0.049 in | 1.25 mm | Jackscrews Mating Flange Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 10 | Contacts Not Included | 0.049 in | 1.25 mm | Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 10 | Contacts Not Included | 0.049 in | 1.25 mm | Jackscrews Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | 6 | Contacts Not Included | 0.049 in | 1.25 mm | Jackscrews Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | ||||
Harwin Inc. | 2 | Contacts Not Included | 0.049 in | 1.25 mm | Mating Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in | Free Hanging (In-Line) | 4 | 12 | 8 | |
Harwin Inc. | 2 | 12 | Contacts Not Included | 0.049 in | 1.25 mm | Mounting Flange Polarizing Key | Female Socket | -65 ░C | 150 °C | Green | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Receptacle | 1.25 mm | 0.049 in |
