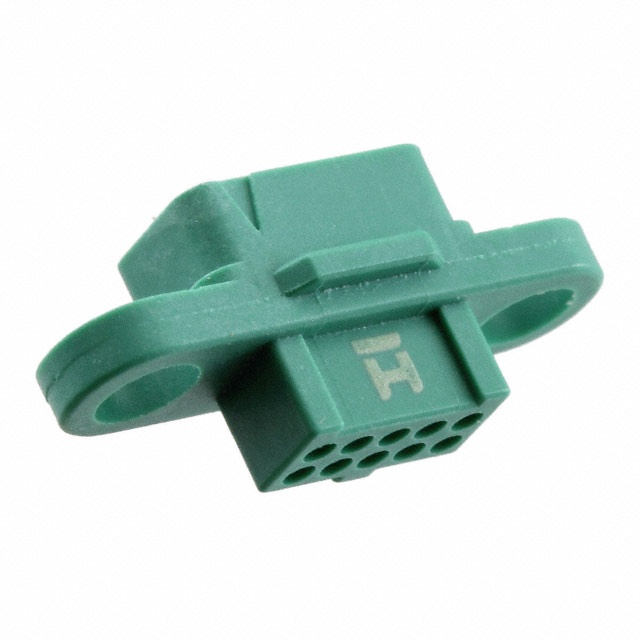

Specification	G125-224109600

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Screw Lock
Features	Mounting Flange, Polarizing Key
Insulation Material	Halogen Free, Polyamide (PA4T), Nylon 4T, Glass Filled
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-65 °C
Pitch	0.049 in
Row Spacing	0.049 in

G125-224 Series

Part	Features	Color	Number of Positions	Pitch	Fastening Type	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Connector Type	Mounting Type	Contact Termination	Number of Rows	Row Spacing	Note	Number of Positions (Normal)	Number of Positions (Power)	Number of Positions (Total)
Harwin Inc. G125-224269600	Mounting Flange Polarizing Key	Green	26	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2245096F3	Jackscrews Mating Flange Mounting Flange Polarizing Key	Green	50	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2240696F3	Jackscrews Mating Flange Mounting Flange Polarizing Key	Green	6	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2245096F1	Jackscrews Mounting Flange Polarizing Key	Green	50	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-22496F1-01-08-01	Jackscrews Mating Flange Polarizing Key	Green		0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Free Hanging (In-Line)	Crimp	2	0.049 in	Contacts Not Included	8	2	10
Harwin Inc. G125-2241096F3	Jackscrews Mating Flange Mounting Flange Polarizing Key	Green	10	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-224109600	Mounting Flange Polarizing Key	Green	10	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2241096F1	Jackscrews Mounting Flange Polarizing Key	Green	10	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2241696F1	Jackscrews Mounting Flange Polarizing Key	Green	16	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
Harwin Inc. G125-2240696F1	Jackscrews Mounting Flange Polarizing Key	Green	6	0.049 in	Screw Lock	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	-65 °C	150 °C	Female Socket	Receptacle	Panel Mount	Crimp	2	0.049 in	Contacts Not Included
