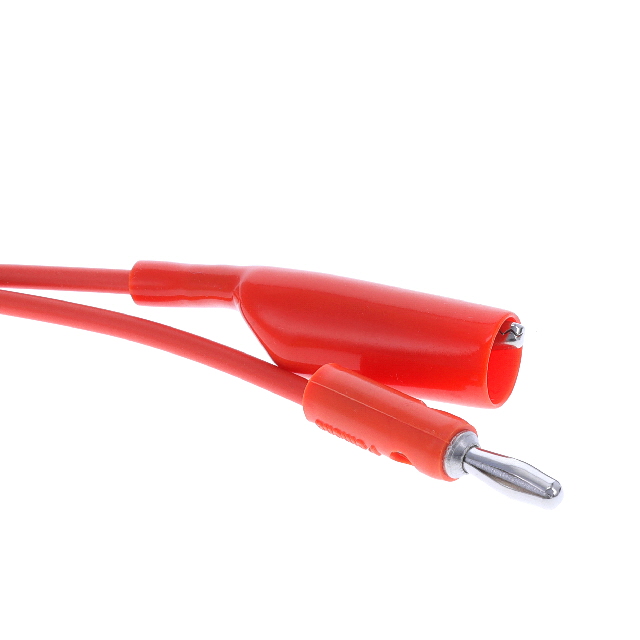

EM1166-24-3#

Active

Pomona Electronics

BANANA CONNECTORS / ALLIGATOR CLIPS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EM1166-24-3#

Active

Pomona Electronics

BANANA CONNECTORS / ALLIGATOR CLIPS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EM1166-24-3#

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Alligator Clip, Insulated
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Alligator
Contents	1 Lead, Orange
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	30 VAC
Wire Gauge	18 AWG

EM1166 Series

Part	Cable Length	Cable Length	Voltage - Rated	Contents	Stacking Method	Wire Gauge	Configuration	Current Rating (Amps)	1st Connector	Material - Insulation	2nd Connector	Type	Contents [custom]	Contents	Contents [custom]
Pomona Electronics EM1166-24-4#	24 "	609.6 mm	30 VAC	1 Lead Yellow	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-96-0#			30 VAC	1 Lead Black	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-24-3#	24 "	609.6 mm	30 VAC	1 Lead Orange	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-24-7#	24 "	609.6 mm	30 VAC	1 Lead Violet	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-24-5#	24 "	609.6 mm	30 VAC		Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-60-9#	5 ft	1524 mm	30 VAC	1 Lead White	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-144-2#	144 in	3657.6 mm	30 VAC	Red	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord	1
Pomona Electronics EM1166-24-1#	24 "	609.6 mm	30 VAC	Brown	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord		1 Cable
Pomona Electronics EM1166-60-6#	5 ft	1524 mm	30 VAC	1 Lead Blue	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord
Pomona Electronics EM1166-24-8#	24 "	609.6 mm	30 VAC	Gray	Front and Vertical Multi-Stacking	18 AWG	Banana to Alligator	5 A	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	Alligator Clip Insulated	Patch Cord			1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.19
		25	$ 10.19
LCSC	N/A	1	$ 0.00

Description

General part information

EM1166 Series

24.0" (609.60mm) Banana Plug, Single, Stackable To Alligator Clip, Insulated Patch Cord 30VAC

Documents

Technical documentation and resources
